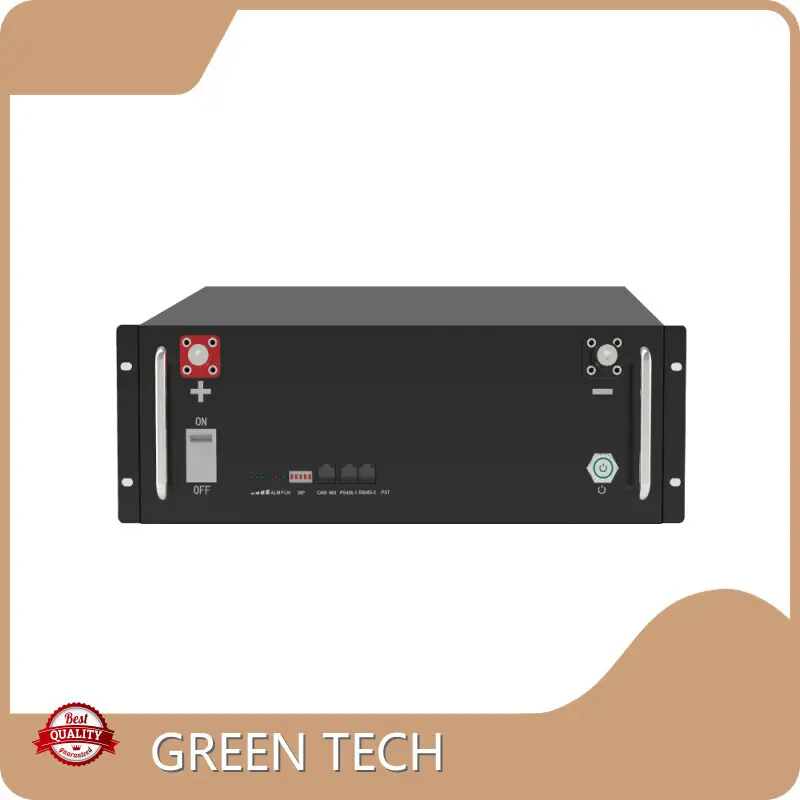

Battery Energy Storage Capess Series

Company Advantages

· battery energy storage is a commercially viable and environmentally sound alternative.

· To save the energy, puts the eco-friendly materials into use during the production.

· has professionalized its service system to benefit the customer with convenience.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V7400-E
Energy storage	7.45kWh
Nominal Voltage	51.8Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	39.2Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Round Trip Efficiency	96.8%
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural cooling
Monitoring Data	System voltage, current, SOC, SOH, temperature, cycle, cell's voltage
Shell Material	Metal & ABS plastic

Weight	52kg
Dimensions(WxDxH)	470x565x170(mm)
Operating Humidity	0-90%RH Non-condensing

Certificate Options

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· Years have passed since the first product was launched by Now we are a mature manufacturer of best selling battery energy storage.

· Thanks to the adoption of the high technology, the battery energy storage is of great performance. has introduced imported advanced machines to optimizing the production of battery energy storage. battery energy storage is produced by the advanced facilities.

· We will insist on providing customers with quality products, excellent service, and competitive prices. We attach great importance to long-term relationships with all parties. Please contact.

Product Comparison

Compared with similar products, our battery energy storage has the following major characteristics.
