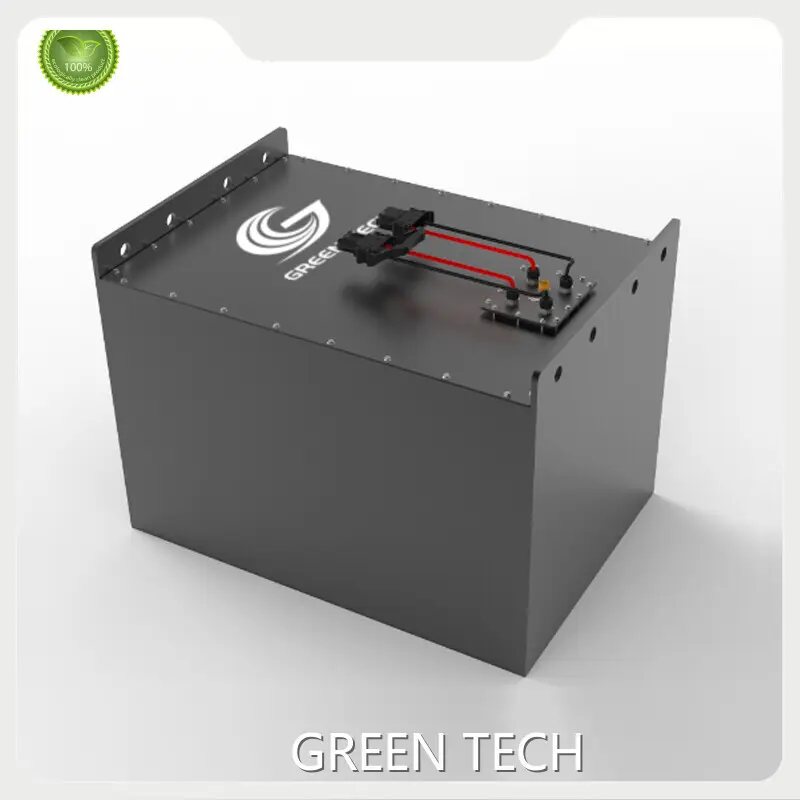

Battery Energy Storage EM Series

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-72V18720-F
Energy storage	18.72kWh
Nominal Voltage	72Vdc
Maximum Charge Voltage	84Vdc
Discharge Cut-off Voltage	56Vdc
ESR/AC @1KHz 50% SOC	<50mΩ
Max. Continuous Charge Current	150A
Max. Continuous Discharge Current	150A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	230kg
Dimensions(WxDxH)	740x540x320(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· battery energy storage is designed with an aesthetically pleasing appearance that customers want.

· The product has a long service life and long-lasting performance.

· After putting quality-oriented into operation, has gained much more fame than before.

Company Features

· is a famous manufacturer of battery energy storage in China.

· Based on the standard of quality control system, battery energy storage of is popular for its exceptional quality.

· Our pledge to our customers is “quality and safety”. From the incoming materials inspection, components inspection, to the piece quality inspection, we promise to do our best and offer the desired requirements.

Application of the Product

battery energy storage of is widely used and has a wide range of applications.

With Internet technology, we provide a one-stop solution for practical and effective implementation of related problems encountered in the process of purchasing products.
