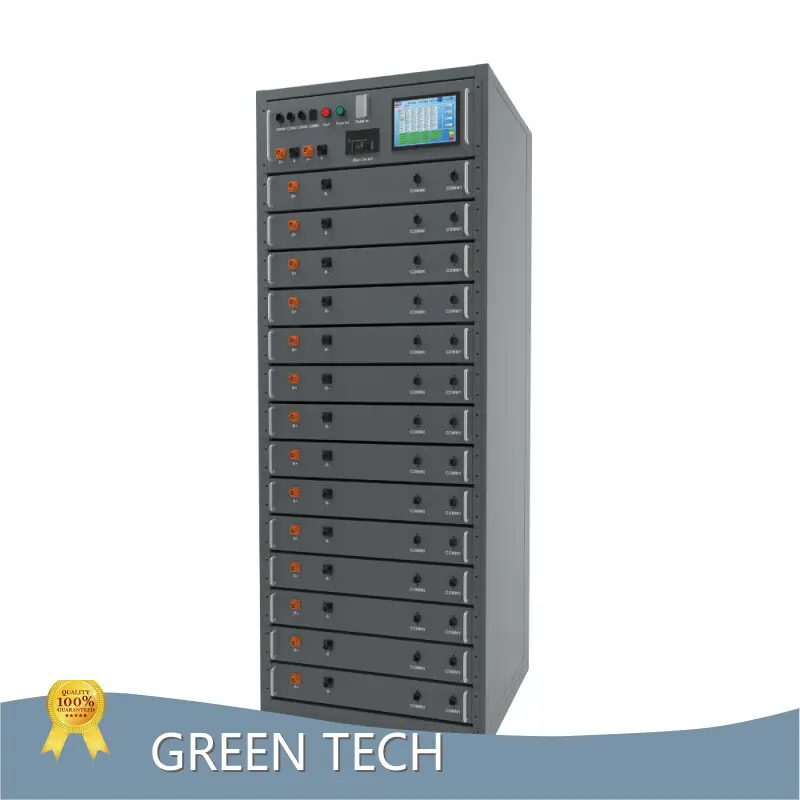

Battery Energy Storage System 150A-1

Part Number:
GTEF-716V150kWh-R
Maximum Charge Voltage:
806.4Vdc
Max. Continuous Discharge Current:
150A
Discharge Cut-off Voltage:
604.8Vdc
Dimensions(WxDxH):
801x832x2166(mm)
Inquiry
Send your inquiry

Product details of the battery energy storage system


Product Information

The designs and colors of battery energy storage system are adaptable with personality and style. The fully trained and qualified QC team is responsible for the quality of this product. Anytime there is problem for our battery energy storage system, we will provide timely help.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEF-716V100K-R

Energy storage

150.5kWh

Nominal Voltage

716.8Vdc

Maximum Charge Voltage

806.4Vd.c (Recommended high voltage limit:784V)

Discharge Cut-off Voltage

604.8Vd.c (Recommended low voltage limit: 627.2V)

ESR/AC @1KHz 50% SOC

<150mΩ

Max. Continuous Charge Current

150A

Max. Continuous Discharge Current

150A

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

10,000 times(70%EOL)

Recommended Depth of Discharge

≤ 90%

Maximum Depth of Discharge

100%

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

Terminal

Large power energy storage terminals

Environmental Protection

IP20 Indoor

Shell Material

Metal

Parallel Connection

 No limited ( add controller box )

communication

CAN, RS485, LAN

Weight

1560kg

Dimensions(WxDxH)

801x832x2166(mm)

Mount Options

On floor

Certificate Options
1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)


Company Advantage

• Through the application of online information service tools, our company implements clear management of after-sales service. With the improvement of the efficiency and quality of after-sales service, each customer could enjoy high-quality after-sales service.
• With a major focus on talents development, has elite teams with rich experience. Our team members are highly educated and highly qualified.
• enjoys an excellent geographical location with traffic convenience. They are a good foundation for our own development.
has been engaged in the R&D and manufacturing of for years. The products are multi-functional and quality-reliable. Your inquiry and cooperation are warmly welcome!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
