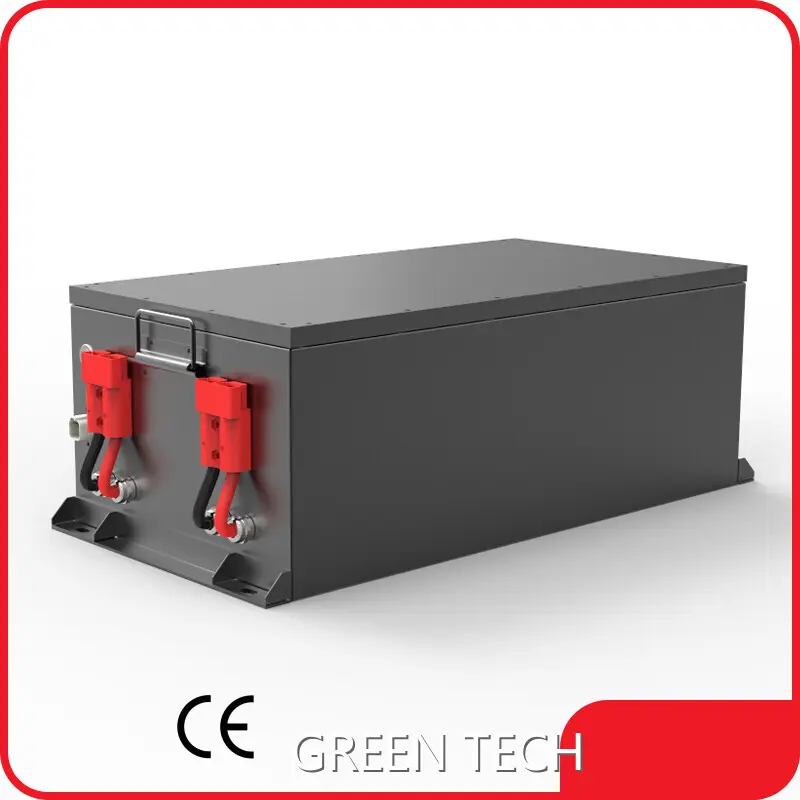

Battery Energy Storage System 200A Brand EM Series

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V8500-G
Energy storage	8.5kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 10s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	75kg
Dimensions(WxDxH)	950x400x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· design for battery energy storage system has always been following the concept - striving for first-rate.

· The product is tested again and again ensuring long service life.

· Since the product meets the customer's expectation perfectly, the product will have a wider market.

Company Features

· has been recognized for decades as a industry leader in the development of battery energy storage system.

· has carried out the plan of introducing high-end technology to produce battery energy storage system.

· Service and quality are the top priorities for the team. Inquiry!

Application of the Product

battery energy storage system, one of main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields.

is dedicated to providing professional, efficient and economical solutions for customers, so as to meet their needs to the greatest extent.
