Battery Energy Storage System 4.5kWh 1
Battery Energy Storage System 4.5kWh 2
Battery Energy Storage System 4.5kWh 1
Battery Energy Storage System 4.5kWh 2

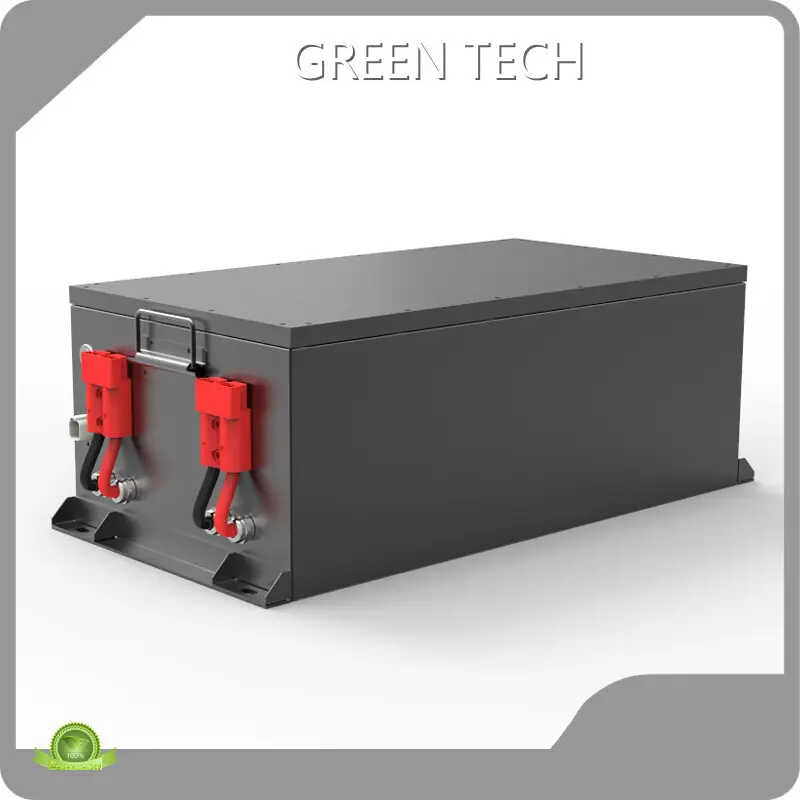

Battery Energy Storage System 4.5kWh

Nominal Voltage:
48Vdc
Max. Continuous Charge Current:
200A
Energy storage:
4.5kWh
Discharge Cut-off Voltage:
40Vdc
Dimensions(WxDxH):
720x355x252mm
Inquiry

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-48V4500-G

Energy storage

4.5kWh

Nominal Voltage

48Vdc

Nominal Capacity

130Ah

Maximum Charge Voltage

58.8Vdc

Discharge Cut-off Voltage

40Vdc

ESR/AC @1KHz 50% SOC

<30mΩ

Max. Continuous Charge Current

200A

Max. Continuous Discharge Current

200A

Absolute Peak Current 3s

400A

Discharge Temperature

-20℃~+60℃

Charge Temperature

0℃~+55℃

Cooling Method

Natural cooling

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

Module voltage,SOC

Indicator light display

Capacity %

Environmental Protection

IP65

Storage Conditions

-20℃~+40℃

25% ~ 95%RH

SOC>30%,one full charge needed per two months

Weight

55kg

Dimensions(WxDxH)

720x355x252(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Advantages

· battery energy storage system is manufactured under rigorous materials inspection procedure and standardized production conditions.

· The quality team tests the product against varied parameters to ensure the high quality.

· This product is more applicable with all these features.


Company Features

· is one of the well-established manufacturers of battery energy storage system in China. We have unparalleled knowledge and experience in this field.

· The upgraded technology can guarantee that the long service life of battery energy storage system.

· ​​will develop horizontally to meet the needs of the foreign trade market. Get info!


Application of the Product

The battery energy storage system managed by is widely used in industry.

Our solutions are developed by understanding the customer's situation and combining the current market conditions. Therefore, they are all targeted and can effectively solve problems of customers.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
