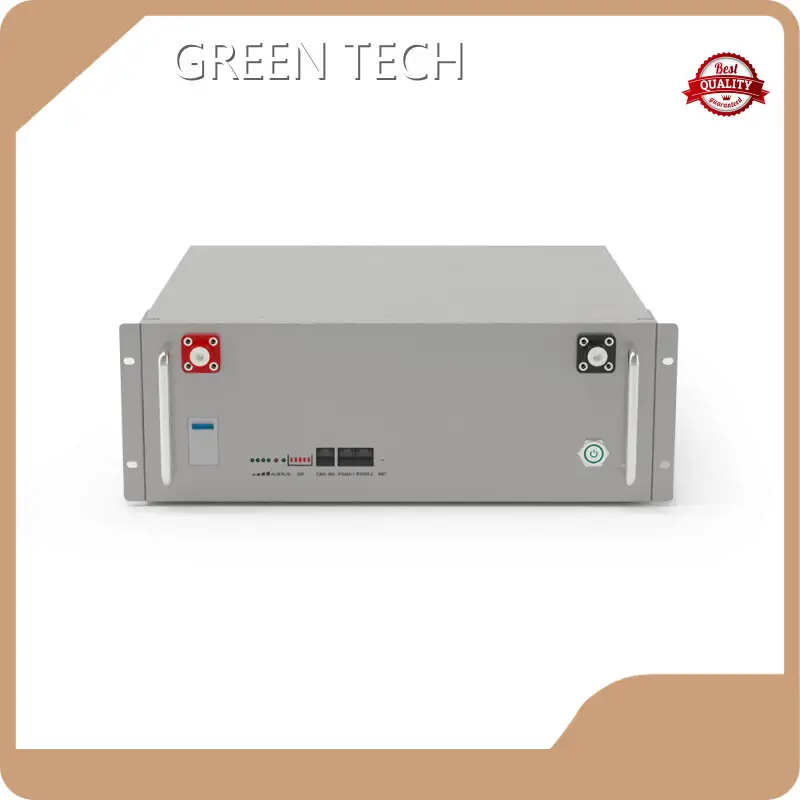

Battery Energy Storage System 45kg - for Workplace - 1

Battery Energy Storage System 45kg - for Workplace - 2

Battery Energy Storage System 45kg - for Workplace -

Weight:

45kg

Nominal Voltage:

51.8Vdc

Maximum Charge Voltage:

58.8Vdc

Max. Continuous Discharge Current:

100A

Discharge Cut-off Voltage:

42Vdc

Inquiry

Product details of the battery energy storage system

Quick Detail

battery energy storage system is designed by top designers. The product has attracted appearance and impresses most customers in the market. The product prevails over its competitors with stable performance and long service life. has set up a complete distribution and sales network.

Product Description

Under the premise of ensuring the same price, the battery energy storage system that we develop and produce as a whole has been substantially improved in a scientific way, as shown in the following aspects.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V5500-E
Energy storage	5.59kWh
Nominal Voltage	51.8Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Round Trip Efficiency	96.8%
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural cooling↳
Monitoring Data	System voltage, current, SOC, SOH, temperature, cycle, cell's voltage
Shell Material	Metal & ABS plastic

Weight	45kg
Dimensions(WxDxH)	470x462x170(mm)
Mount Options	on rack cabinet

Company Introduction

has a strong advantage in the battery energy storage system trade area. has established long-term technical cooperation with several universities. We cooperate with internationally trusted logistic service providers such as DHL, EMS, and UPS who safely ship our products to countries around the world. Get more info!
We always insist on the production of high-quality products. Welcome customers with needs to negotiate with us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
