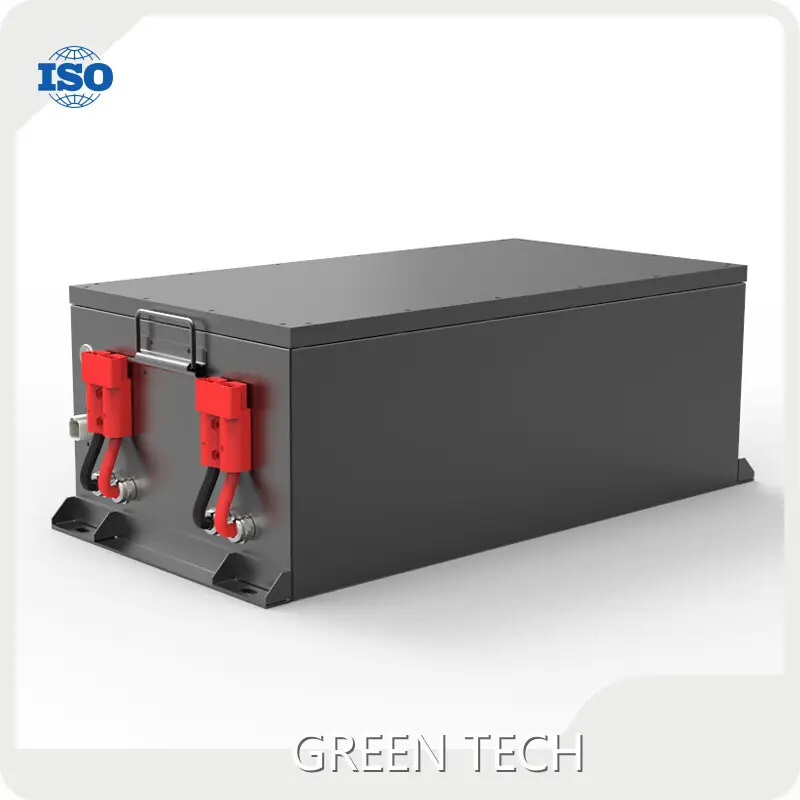

Battery Energy Storage System Brand 42Vdc 75kg

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V8500-G
Energy storage	8.5kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 10s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	75kg
Dimensions(WxDxH)	950x400x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The excellent performance of battery energy storage system can create a healthy and comfortable environment for customers.

· The product is in compliance with some of the toughest quality standards across the world.

· has trained, experienced, and dedicated specialists serving its customers.

Company Features

· Having extensive experience in designing and developing battery energy storage system, is known as one of the leading manufacturers in China.

· Our factory boasts a high-efficient production line that allows for material selection, machining, and inspection of finished products. This line can operate 24 hours a day to guarantee the output.

· We accept individual and corporate responsibility for our actions, working together to deliver quality services and to promote the best interest of our clients.

Application of the Product

battery energy storage system has a wide range of applications.

insists on providing customers with reasonable solutions according to their actual needs.
