· Thanks to our unremitting effort in product improvement, this product is able to keep pace with the ever-changing demands of customers and is thought to have a bright future of market application.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-800V57K-R
Energy storage	57kWh
Nominal Voltage	800Vdc
Maximum Charge Voltage	900Vdc
Discharge Cut-off Voltage	626Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, LAN

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· relies on rich practical experience and mature technology products to enjoy high reputation at home and abroad.

· Occupying a large scale, the factory provides standardized production conditions. It is built in line with the regulations and standards for the workshop in China, including illumination condition, standard production lines, and waste handling capability. We have achieved a production license. This license is recognization of our product quality and our manufacturing capability. Customers are free to see the accountability and quality checks through this certificate. The factory has newly introduced a complete set of manufacturing facilities. These facilities run at a relatively high automation level, which greatly reduces labor costs. This means the production cost is cut.

· We will work to become a human- and environment-oriented company. We will try to achieve sustainable development by reducing emissions and cutting energy consumption.

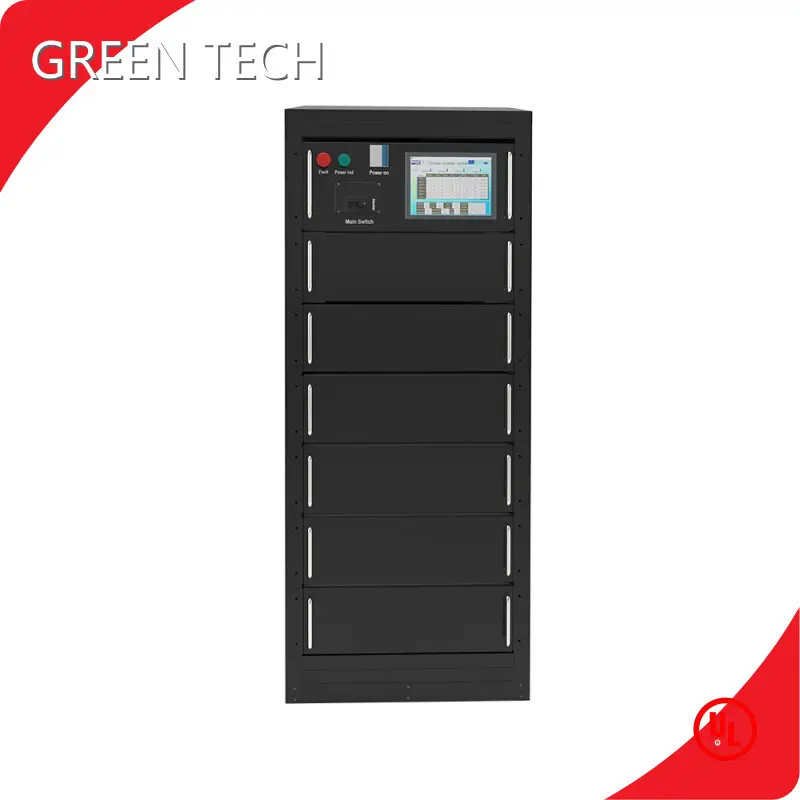

Product Details

The following are the battery energy storage system's details presented to you by And it can help you better understand the product details.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
