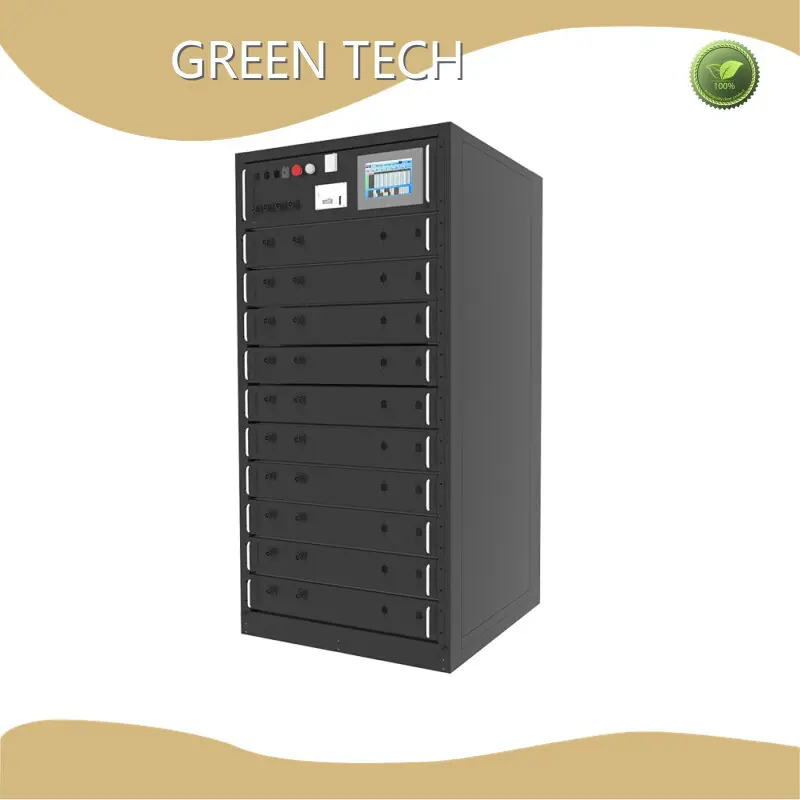

Battery Energy Storage System Bulk Buy EF Series

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-512V50KW/100KWH-R
Energy storage	107.5kWh
Nominal Voltage	512Vd.c
Maximum Charge Voltage	576Vd.c
Discharge Cut-off Voltage	448Vd.c
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	120A
Max. Continuous Discharge Current	120A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	10,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	IP20 Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, TCP

Weight	1315kg
Dimensions(WxDxH)	801x832x1629(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· battery energy storage system is rich in modern design styles that are designed by our experts.

· After strict inspection and tests, the product is qualified with high performance and high quality.

· The high grade quality of battery energy storage system helps it gain international competitiveness.

Company Features

· With the first-class level equipment, advanced R&D ability, high quality battery energy storage system, plays a big role in this industry.

· has made a great success in improving the performance of battery energy storage system.

· We continuously optimize our products as well as our processes. The objective is to always remain a modern, dynamic and value-adding partner.

Application of the Product

battery energy storage system can be used in multiple industries and fields.

has a team of experienced professionals, mature technology and a sound service system. All this can provide customers with one-stop solutions.
