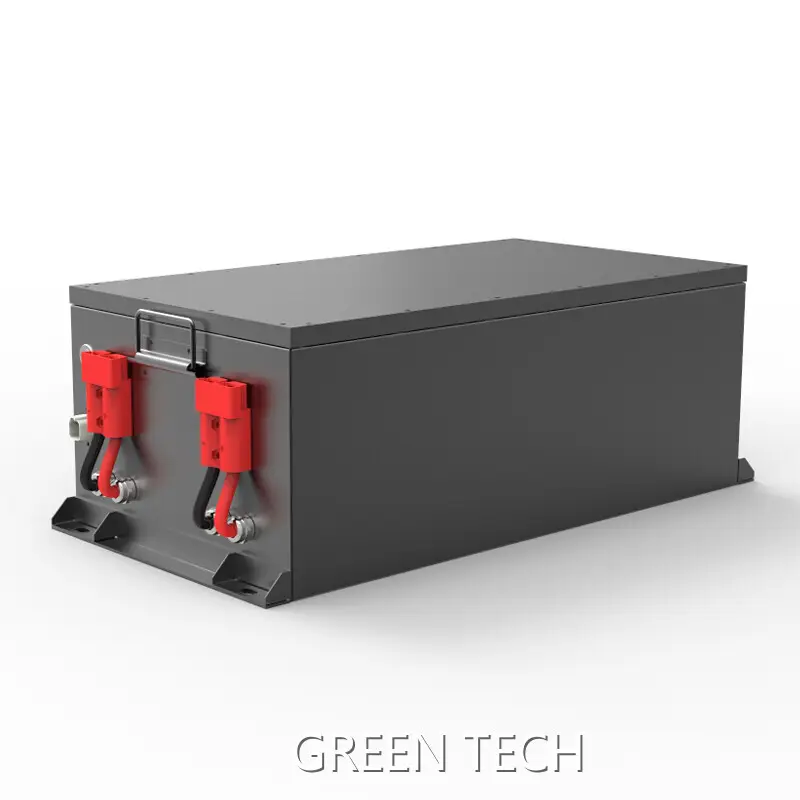

Battery Energy Storage System GTEM-48V6500-G Wholesale -

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V6500-G
Energy storage	6.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	75kg
Dimensions(WxDxH)	940x400x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The costs for battery energy storage system is reduced in the design phase.

· Its quality is strictly controlled and it has passed many international certifications.

· has abundant funds and strong scientific manpower.

Company Features

· is the main producers at home and abroad for battery energy storage system.

· Thanks to progressive partnerships, we have established a good reputation in the global market. This allows us to export products like battery energy storage system across the globe: USA, Europe, Asia, and South America.

· Permanent target of is to create the top brand in the battery energy storage system industry in the world. Ask online!

Application of the Product

battery energy storage system of has very extensive application in different scenarios.

is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
