After many times of iterations, sole weight of battery for household'body frame is effectively decreased. This product is tested before delivery to meet top-notch quality standards. Backed and supported by years of experience in the industry, this product has obtained numerous praises.

Product Parameters

General Characteristics

Mechanical Specifications

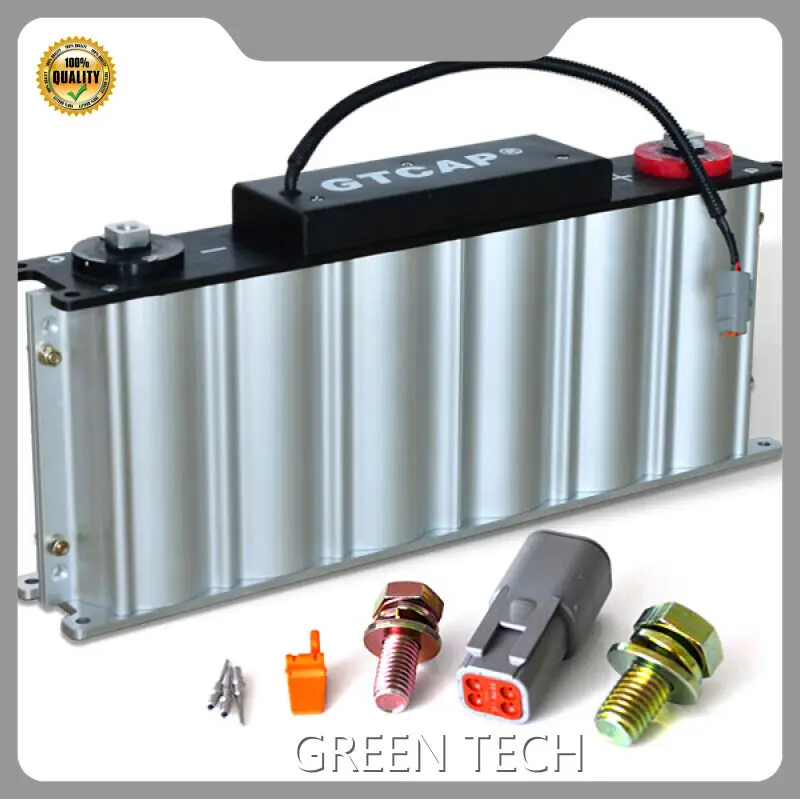

Part Number	GTSM-16V-500FUS
Nominal capacitance	500 F
Capacitance tolerance	+20% / -0%
Rated voltage	16V
Maximum absolute voltage	17V
Maximum series voltage	750V
ESR, DC	1.8mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range(Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8/M10
Recommended torque - terminal	20/30 Nm
Vibration specification	GB-T 11287-2000
Shock specification	GBT 14537-1993
Environmental protection	IP65

Weight	5.7 kg
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm
Usable power density (Pd)	3,590 W/kg

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantage

• products are favored by consumers at home and abroad.
• has a great geographical location with quite a few railways and highways nearby, which provides convenience for transportation.
• Our company has established a complete service system to provide timely, professional and comprehensive after-sales service for consumers.
is really glad to provide you with business consulting. Feel free to contact us.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
