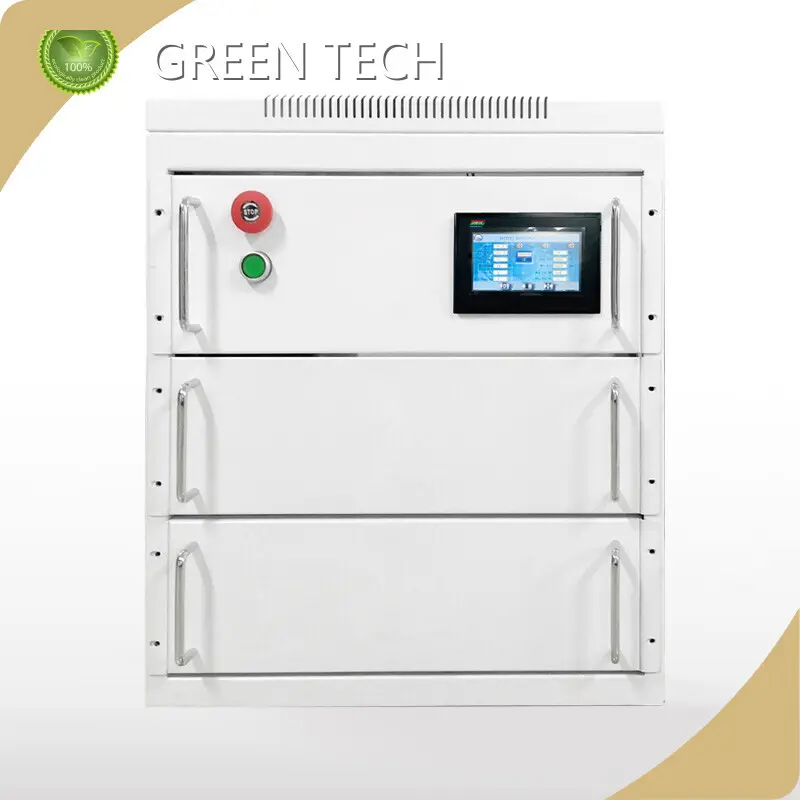

Battery for Household 30A EM Seriesmanufacturing

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-400V14.4K-R
Energy storage	14.4kWh
Nominal Voltage	400Vdc
Maximum Charge Voltage	453.6Vdc
Discharge Cut-off Voltage	291.6Vdc
ESR/AC @1KHz 50% SOC	<200mΩ
Max. Continuous Charge Current	30A
Max. Continuous Discharge Current	30A
Round Trip Efficiency*1	96%
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature, SOC,SOH,cycle,cell’s voltage
Parallel connection optional	Up to 4sets (400V 60KWh)
Communication	CAN, RS485

Weight	165kg±5kg
Dimensions(WxDxH)	520x732x653(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· battery for household adopts reasonable improvements in production.

· The efficiency and costs of this product are optimized and minimized.

· Owing to its application prospects, the product has met with a warm reception and quick sale.

Company Features

· GREEN TECH is engaged in manufacturing and supplying full ranges of different battery for household.

· By applying core technology, has made great success in solving problems during manufacturing battery for household.

· We aim to be the dominant battery for household manufacturer to provide more convenience for more customers. Please contact us!

Application of the Product

battery for household is widely used in various scenes.

always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
