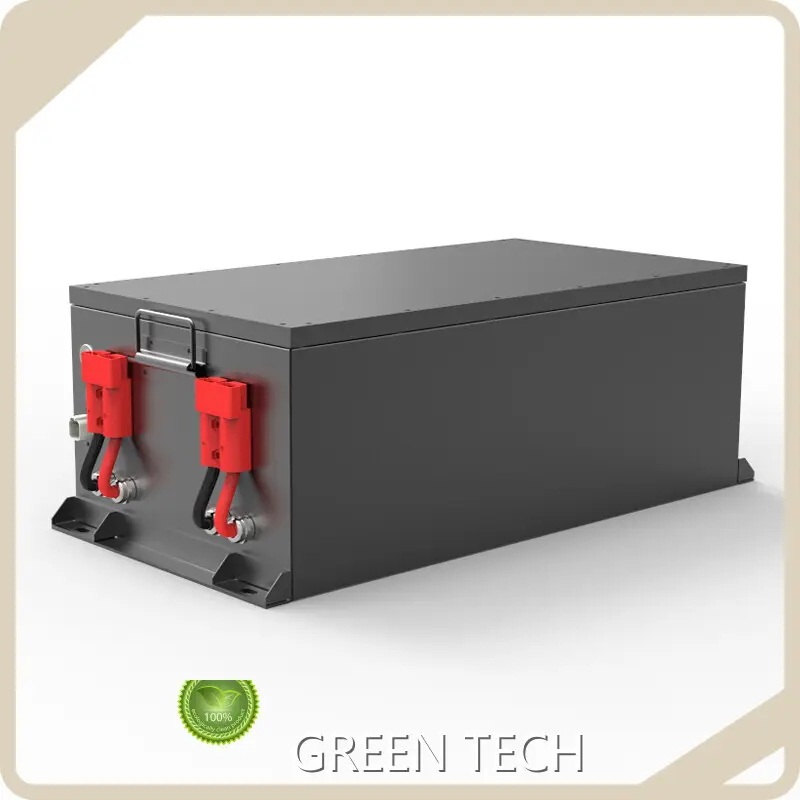

Battery for Household 37Vdc Company

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V3600-G
Energy storage	3.62kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Cut-off Current (charging)	4A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· battery for household is available in various design styles.

· Stable performance, long storage life and reliable quality.

· has received many praises from customers.

Company Features

· is known as a skilled and seasoned battery for household producer globally.

· We have a presence in the international markets because of our innovative products. Over the years, we have continuously brought in advanced technologies and equipment to support in-house R&D and innovation.

· Technological strength is so crucial for us to become stronger. Hence, we have set up a clear growing objective, that is to gain a technological advantage over competitors.

Application of the Product

The battery for household of can be used in many industries.

always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
