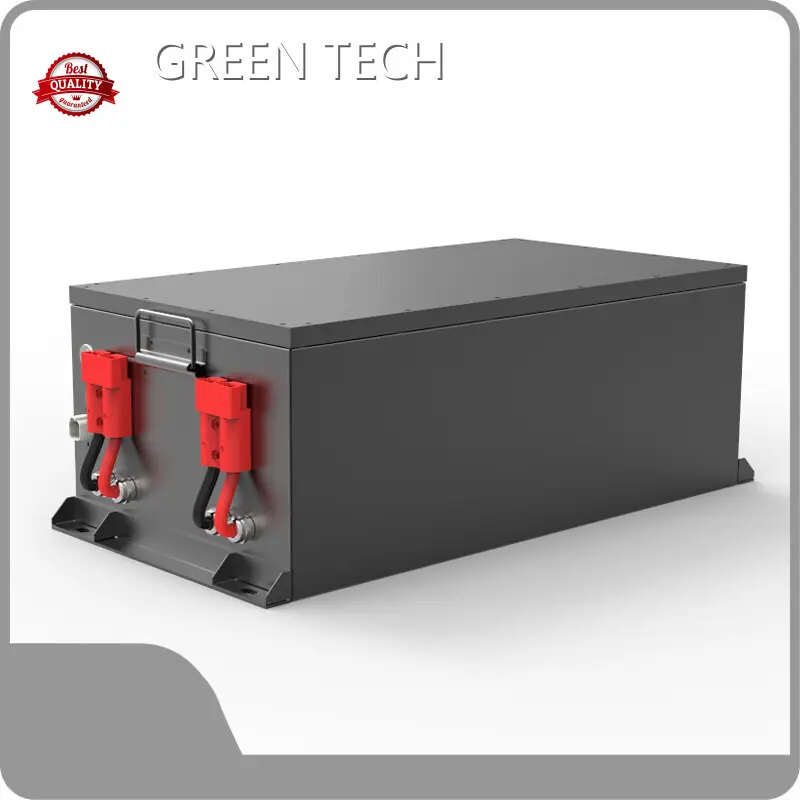

Battery for Household 4.5kWh Company

Nominal Voltage:

48Vdc

Maximum Charge Voltage:

58.8Vdc

Energy storage:

4.5kWh

Discharge Cut-off Voltage:

40Vdc

Dimensions(WxDxH):

720x355x252mm

Inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V4500-G
Energy storage	4.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	400A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· battery for household is rich in modern design styles that are designed by our experts.

· The quality of the products can stand the test of time.

· The product offered by is best suited for customers in the industry.

Company Features

· has been putting years of efforts on the R&D, design, and production of battery for household and has become a competitive manufacturer and supplier.

· is able to effectively manage the diverse needs of our customers.

· Putting battery for household on a prominent strategic position helps improvement. Check it!

Application of the Product

Our battery for household is widely used.

We work hard to develop solutions that best meet the needs of our customers based on their actual situation, so as to help each customer succeed.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
