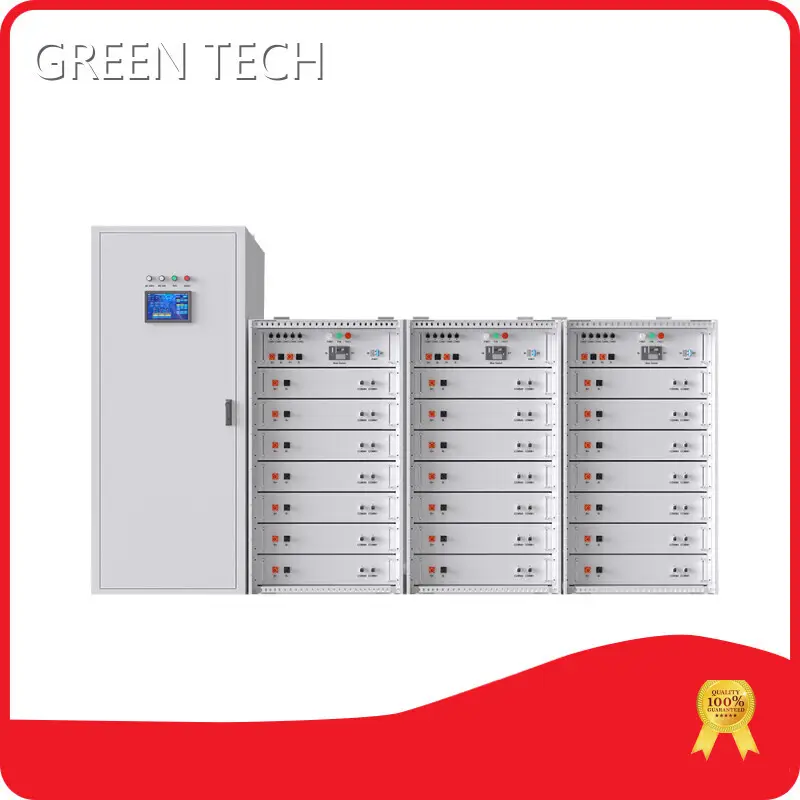

Battery for Household 567Vd.c

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-700V250KW-264KWH-R
Nominal Voltage	699.3Vd.c
Max. Charge Voltage	784.35Vd.c
Discharge Cut-off Voltage	567Vd.c
Nominal Capacity	378Ah
Energy Storage	264.54kWh
Max Continuous Charge Current	360A
Max Continuous Discharge Current	360A
Max. Continuous power	250kW
ESR/AC@1KHZ 50% SOC	<40mΩ
Weight	2500kg
Communication	CAN, RS485, MODBUS TCP

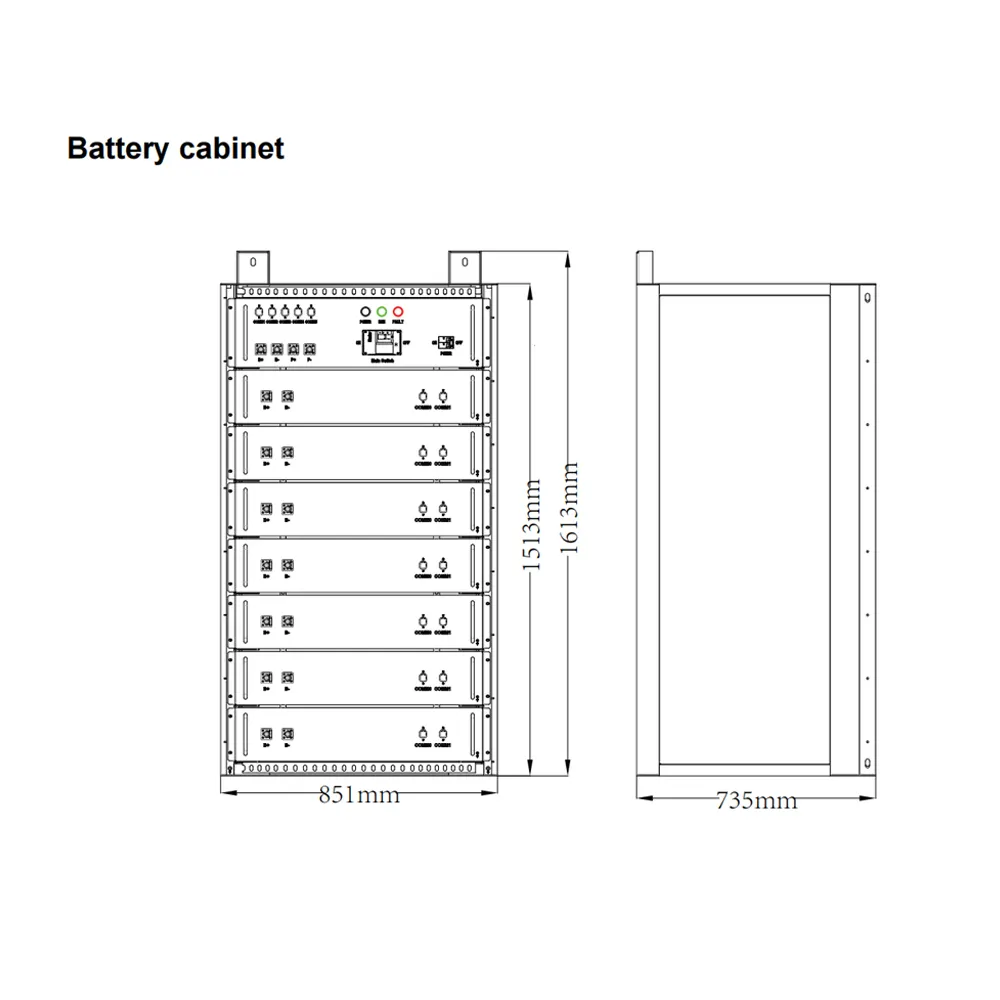

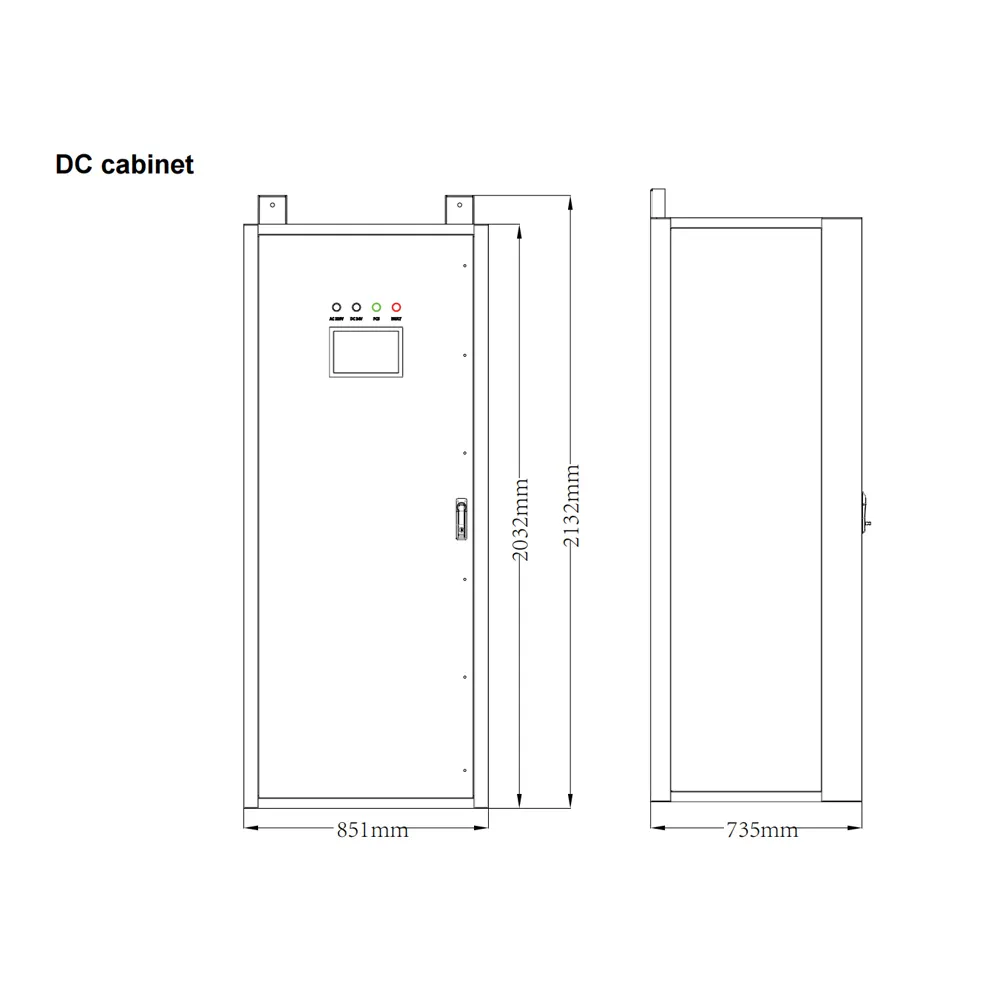

Dimensions(WxDxH)	3740*2400mm
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· battery for household is manufactured by our dexterous professionals using superior quality materials.

· Customers are greatly content with the strong functionality and long service life of the product.

· has formed a well-trained team with proficient skills.

Company Features

· is one of the famous manufacturers of battery for household with abundant production experience.

· Strong scientific research capabilities make ahead of other companies in the battery for household industry.

· Over the years, has been observing the service tenet of honesty and promise. Contact!

Application of the Product

The battery for household of can be used in many industries.

always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
