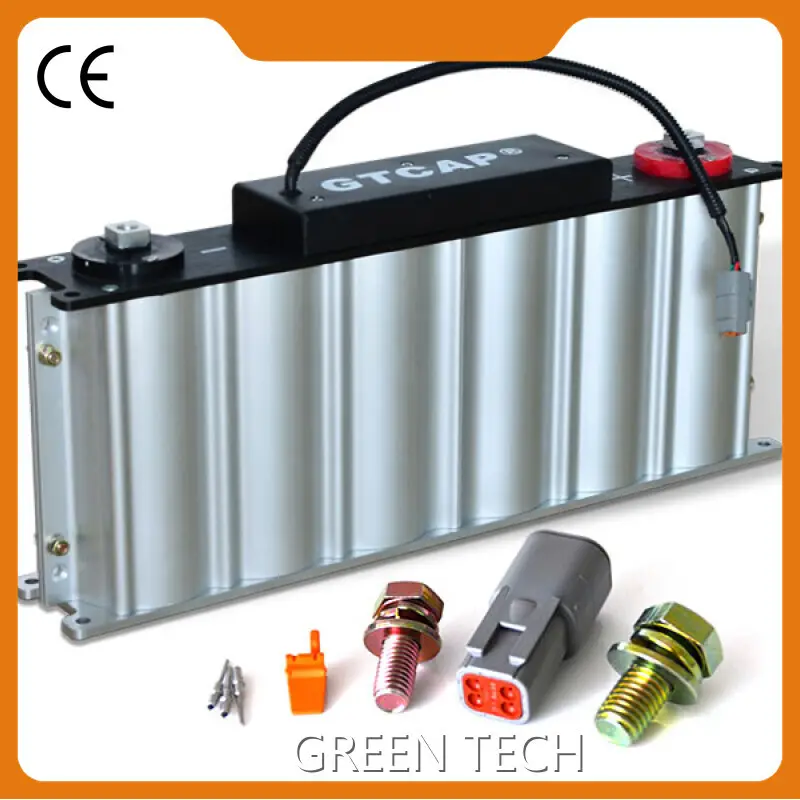

Part Number |
GTSM-16V-500FUS |
Nominal capacitance |
500 F |
Capacitance tolerance |
+20% / -0%
|
Rated voltage |
16V |
Maximum absolute voltage |
17V |
Maximum series voltage |
750V |
ESR, DC |
1.8mΩ |
Maximum continuous current (ΔT=40℃) |
100 A |
Maximum peak current, 1 sec. |
2,275 A |
Maximum leakage current (after 72hrs @ 25℃) |
5.2 mA |
Operating temperature range(Cell case temperature) |
-40℃ to +65℃ |
Storage temperature range(Storage uncharged) |
-40℃ to +70℃ |
Power terminals |
M8/M10 |
Recommended torque - terminal |
20/30 Nm |
Vibration specification |
GB-T 11287-2000 |
Shock specification |
GBT 14537-1993 |
Environmental protection |
IP65 |
Weight |
5.7 kg |
Internal temperature sensor |
NTC Thermistor |
Cell voltage monitoring |
Overvoltage Alarm |
Usable power density (Pd) |
3,590 W/kg |
Compatible Protocol: CAN, RS485
Company Advantages
· battery for household's design offers a unique visual experience.
· The quality of product highly conforms to established specification.
· Based on customer's requirements, we can offer customized service for battery for household.
Company Features
· Established years ago in China, is among the best in the design, manufacture, and export of battery for household.
· We have hired incredible talents who are efficient and creative. They embrace the long-term vision and always being prepared for any eventualities. This enables them to always act flexibly to any changes in clients' needs and requirements.
· regards quality support as the core competitiveness. Please contact us!
Application of the Product
The battery for household developed by is widely used in various fields.
always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
