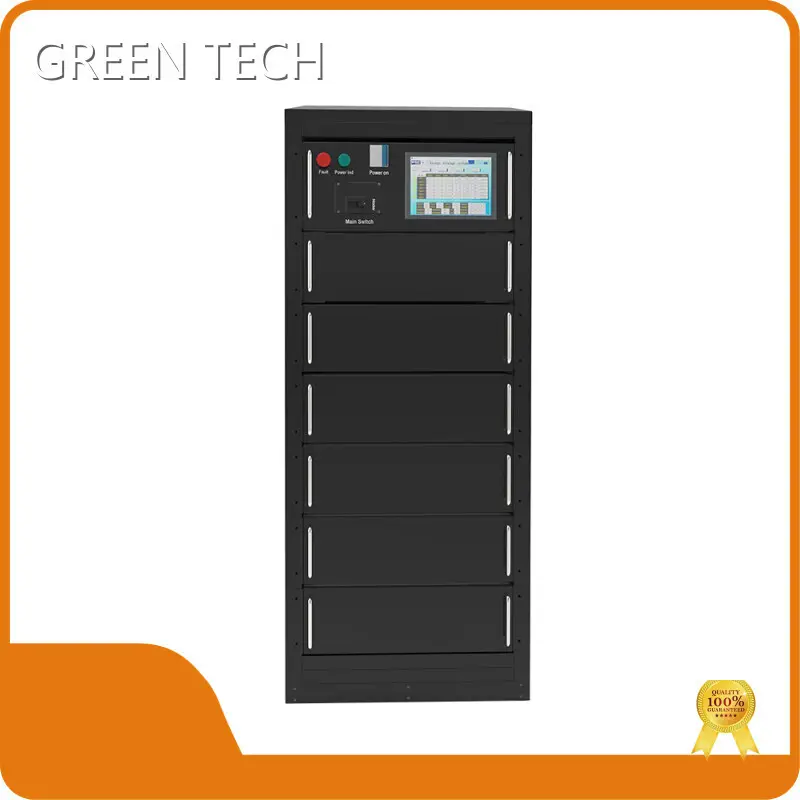

Battery Pack for Household 900Vdc Company

Product details of the battery pack for household

Product Introduction

The design and production of battery pack for household are supported by a team of dedicated and skilled professionals. Its service life is highly guaranteed by the strict test procedure. Over the years, has kept improving in technology, and striven to improve the level of production.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-800V57K-R
Energy storage	57kWh
Nominal Voltage	800Vdc
Maximum Charge Voltage	900Vdc
Discharge Cut-off Voltage	626Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, LAN

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Feature

• has been improving the service since the founding. Now we run a comprehensive and integrated service system which enables us to provide timely and efficient services.
• is located in a unique geographical position with pleasant climate and rich resources. Meanwhile, the traffic convenience is conducive to the circulation and transportation of products.
• has established sales outlets in major cities in China. The products are also exported to Europe, America, Southeast Asia, and other regions.
is available with multiple types, diverse specifications, wide applications and affordable price. Feel free to contact us to order!
