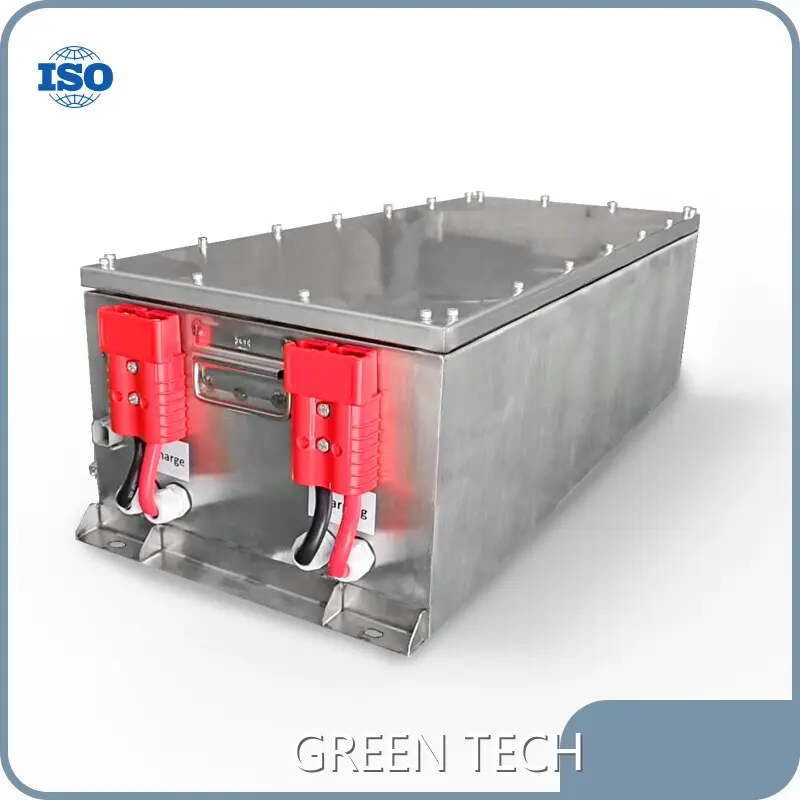

Battery Pack for Household Brand 190kg GTEM-96V20K-B

Product details of the battery pack for household

Product Description

The pattern design of battery pack for household can be customized. This product meets the most stringent quality requirements and can be used for a long time. The product is applied by more and more people for its advantage of high cost performance.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-96V20k-B
Energy storage	20kWh
Nominal Voltage	96Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	109.2Vdc
Discharge Cut-off Voltage	78Vdc
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	500A
Absolute Peak Current 10s	600A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP67
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	190kg
Dimensions(WxDxH)	810x550x500(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
