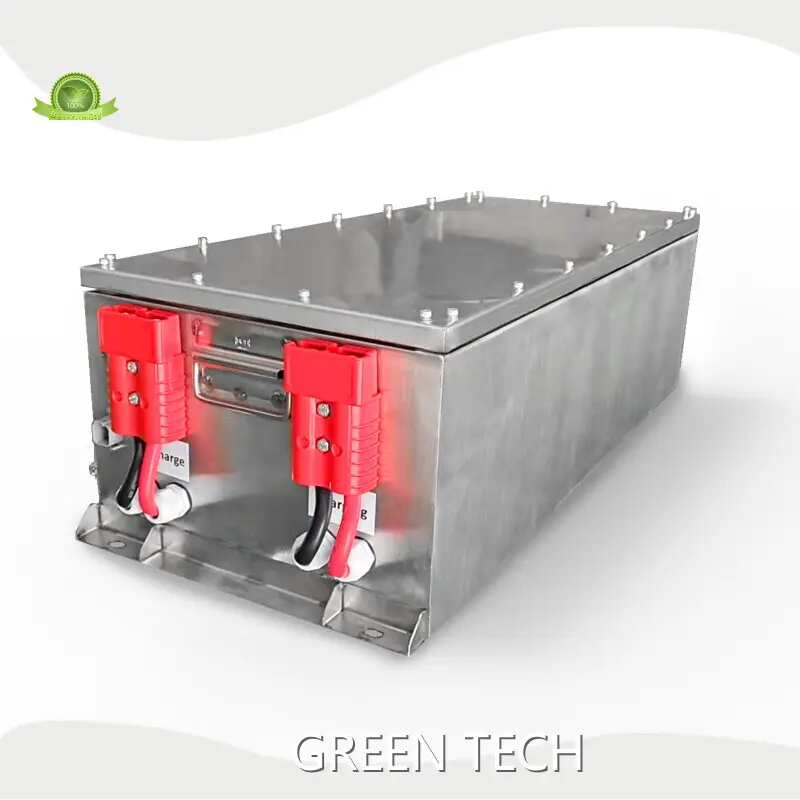

Battery Pack for Household ODM for Agriculture200A

Product details of the battery pack for household

Quick Detail

The mature production process of battery pack for household makes it more valuable. The product is exceptional in terms of performance, durability, reliability, and usability. High quality for battery pack for household is not checked by us and commented by our customers.

Product Description

battery pack for household has superior performances in the following details.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V10k-B
Energy storage	10kWh
Nominal Voltage	51.8Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Stainless steel
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	82kg
Dimensions(WxDxH)	1124x400x256(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V10K-B Battery
