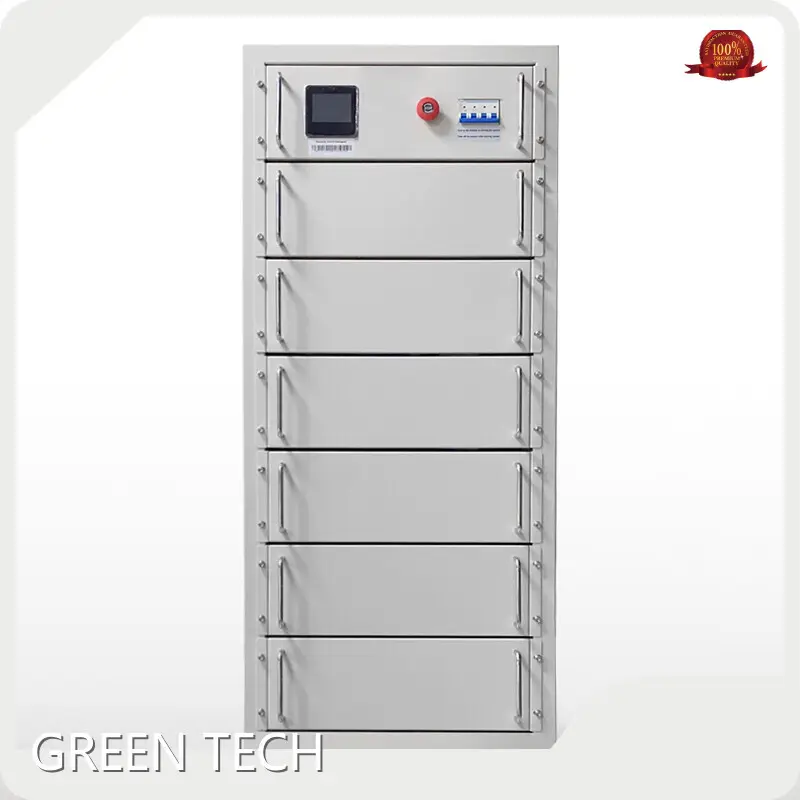

Bepoke Electrical Energy Storage System Manufacture 1
Bepoke Electrical Energy Storage System Manufacture 1

Bepoke Electrical Energy Storage System Manufacture

Series:
EM Series
Part Number:
GTEM-700V25K-R
Max. Continuous Charge Current:
50A
Energy storage:
25.3kWh
Discharge Cut-off Voltage:
554.4Vdc
Inquiry

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-700V25k-R

Energy storage

25.3kWh

Nominal Voltage

702Vdc

Maximum Charge Voltage

83.16Vdc

Discharge Cut-off Voltage

554.4Vdc

ESR/AC @1KHz 50% SOC

<100mΩ

Max. Continuous Charge Current

50A

Max. Continuous Discharge Current

100A

Discharge rate

2.77C

Max. Continuous Output Power

70kW

Charge Temperature*1

0℃~+55℃

Discharge Temperature*2

-30℃~+60℃

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤ 90%

Maximum Depth of Discharge

100%

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

Terminal

Large power energy storage terminals

Environmental Protection

Indoor

Cooling Method

Natural cooling

Shell Material

Metal

Weight

420kg

Dimensions(WxDxH)

560x732x1600(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Advantages

· The development of electrical energy storage system is conducted by a team of professionals.

· The product has the guarantee of our know-how and internationally-certified quality.

· Research & Development are the core competition of


Company Features

· Except exquisite electrical energy storage system, is also highly recommended by customers for its exquisite service.

· owns a strong R&D team with mature technologies and rich experience.

· We are putting efforts into a sustainable future. We are working hard to reduce production waste and CO2 emissions to minimize our footprint.


Application of the Product

The electrical energy storage system produced by is of high quality and is widely used in the industry.

always gives priority to customers and services. With a great focus on customers, we strive to meet their needs and provide optimal solutions.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
