From design to manufacturing, best household batteries is provided with great attention to the details. High quality parameters are enforced on this product. has advanced molds and specialized production equipment.

Product Description

We insist on regulating the production process of the products in accordance with standards, so as to promote the best household batteries has higher quality. Compared with peer products, the specific advantages are mainly reflected in the following aspects.

Product Parameters

General Characteristics

Mechanical Specifications

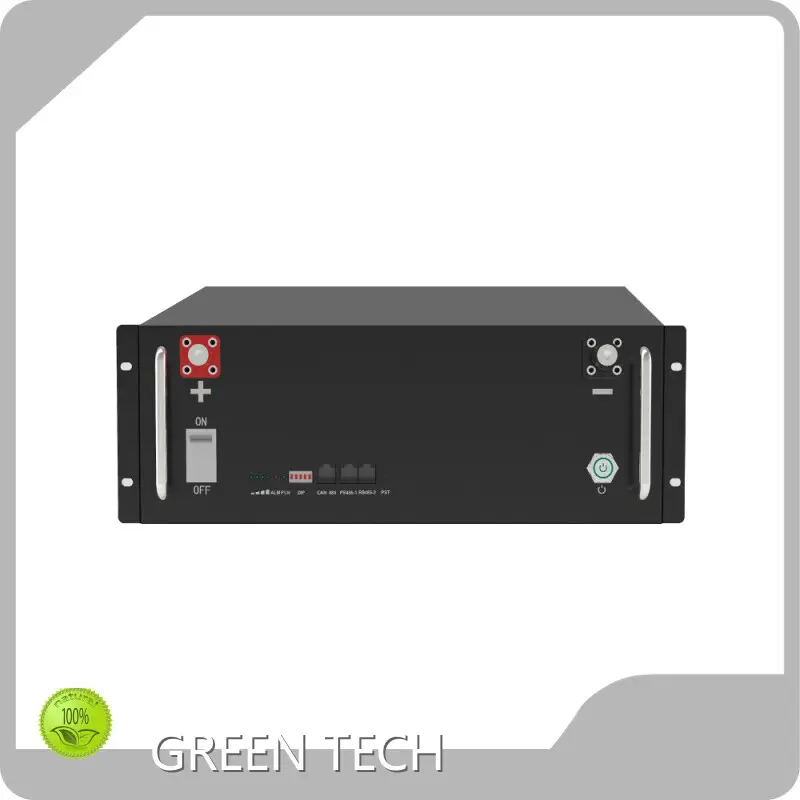

Part Number	GTEM-48V7500-E
Energy storage	7.5kWh
Nominal Voltage	51.8Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Cooling Method	Natural
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage, current, temperature, SOC, SOH, cycle, cell's voltage
Series Connection	Not allowed
Parallel Connection	Up to 16 sets
Series-Parallel Connection	Not allowed

Weight	72kg
Dimensions(WxDxH)	475x685x177(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V7.5kWh Capess

Company Information

which is is located in We are mainly engaged in the production of Sticking to the quality-oriented business philosophy, pragmatic and sincere service attitude, our company provides customers with a full range of one-stop service in pre-sales, sales and after sales. If you would like to purchase our products, please contact us as soon as possible.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
