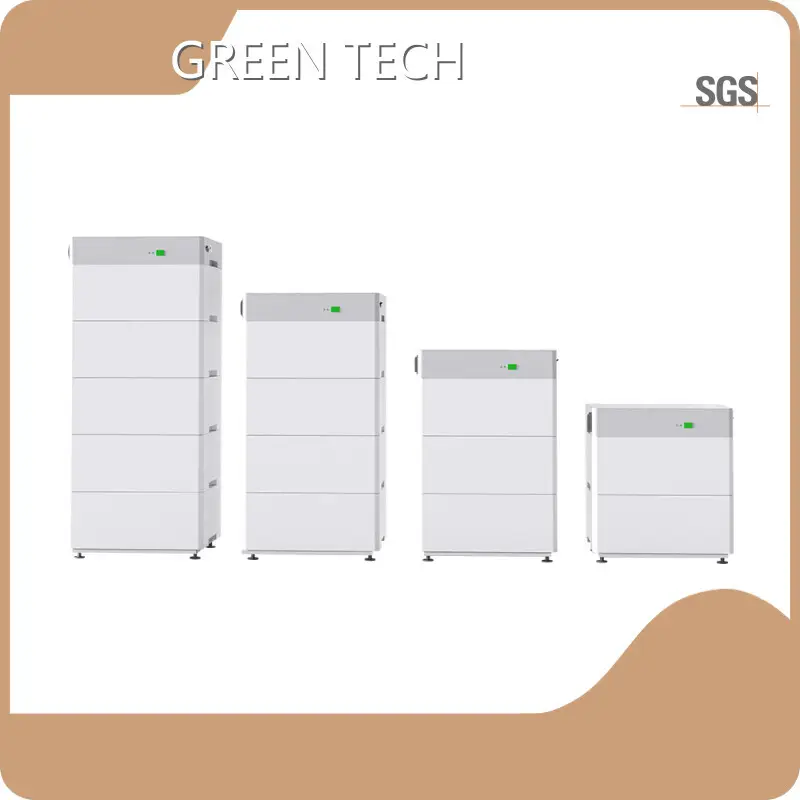

Best Household Batteries Best Factory Price - 179.2Vd.c 1

Best Household Batteries Best Factory Price - 179.2Vd.c 2

Best Household Batteries Best Factory Price - 179.2Vd.c 3

Best Household Batteries Best Factory Price - 179.2Vd.c 4

Best Household Batteries Best Factory Price - 179.2Vd.c

Series:

EF Series

Part Number:

GTEF-205V10K-S

Nominal Voltage:

204.8Vd.c

Discharge Cut-off Voltage:

179.2Vd.c

Dimensions(WxDxH):

480x520x160(mm)

Inquiry

more products

Send your inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-205V10K-S	GTEF-307V15K-S	GTEF-410V20K-S	GTEF-512V25K-S	GTEF-614V30K-S
Energy storage	10kWh	15kWh	20kWh	25kWh	30kWh
Number of series modules	2	3	4	5	6
Nominal Voltage	204.8Vd.c	307.2Vd.c	409.6Vd.c	512Vd.c	614.4Vd.c
Maximum Charge Voltage	230.4Vd.c	345.6Vd.c	460.8Vd.c	576Vd.c	691.2Vd.c
Discharge Cut-off Voltage	179.2Vd.c	268.8Vd.c	358.4Vd.c	448Vd.c	537.6Vd.c
ESR/AC @1KHz 50% SOC	＜100mΩ	＜140mΩ	＜180mΩ	＜220mΩ	＜260mΩ
Max. Continuous Power	5kW	7.5kW	10kW	12.5kW	15kW
Weight	90kg	130kg	170kg	210kg	250kg
Max. Continuous Charge Current	25A	25A	25A	25A	25A
Max. Continuous Discharge Current	25A	25A	25A	25A	25A
Nominal Capacity	52Ah	52Ah	52Ah	52Ah	52Ah
Communication Way	CAN	CAN	CAN	CAN	CAN
Monitoring Data	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.
Projected Cycle Life ( 25℃)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)
Recommended Depth of Discharge	≤90%	≤90%	≤90%	≤90%	≤90%
Maximum Depth of Discharge	100%	100%	100%	100%	100%
Environmental Protection	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor
Shell Material	Metal	Metal	Metal	Metal	Metal
Parallel Connection optional	Not allowed	Not allowed	Not allowed	Not allowed	Not allowed

Company Advantages

· best household batteries has been evaluated in many aspects. They include electrical safety, sanitation, EMC, energy efficiency, electrical shock&leakage, and more.

· The product is repeatedly tested to refuse any flaws.

· has already regarded the international best household batteries market as a target for future development.

Company Features

· specializes in the R&D, design, and production of best household batteries. We also provide a wide range of related services and products.

· has a first-class technical team responsible for best household batteries product development.

· We work to reduce the impact of our activities on the environment. We frequently take steps to reduce CO2 emissions, production waste and improve the recycling rate.

Application of the Product

The best household batteries of can be used in many industries.

We have been engaged in the production and management of for many years. For some problems encountered by customers in the procurement, we have the ability to provide customers with a practical and effective solution to help customers solve problems better.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
