Product details of the capacitor bank
Product Information
capacitor bank's design idea is based on the search for a high-quality life standard. Multiples functions for capacitor bank is provided for multiple usages. With years of producing capacitor bank, has its own technology to develop new products.
|
Parameter |
GT-EST06KH |
GT-EST08KH |
GT-EST10KH |
|
Efficiency |
Max Efficiency |
>98 2% |
>98 2% |
>98 2% |
|
PV Input
|
Max. PV input power(W) |
7800 |
10400 |
13000 |
|
Max. PV input voltage(V) |
1000 |
1000 |
1000 |
||
MPPT Operation Voltage Range (V) |
180-950 |
180-950 |
180-950 |
||
Number of MPPT/PV Strings |
2/1 |
2/1 |
2/1 |
||
Max. PV input current(A) |
15/15 |
15/15 |
15/15 |
||
Short- circuit current of PV input( A) |
18/18 |
18/18 |
18/18 |
||
Battery
|
Max Input/Output Voltage(V) |
550 |
550 |
550 |
|
Operating Voltage Range(V) |
180-550 |
180-550 |
180-550 |
||
Max Charge/Discharge Current(A) |
25/30 |
25/30 |
25/30 |
||
Max Input/Output Power(W) |
6000/6000 |
8000/8000 |
10000/10000 |
||
Battery Type |
Li-ion/Lead-acid |
||||
AC Input and Output
|
Rated Power(W) |
6000 |
8000 |
10000 |
|
Max. Apparent AC Power(VA) |
6000 |
8000 |
10000 |
||
Nominal AC Voltage(Vac) |
380,3L/N/PE |
380,3L/N/PE |
380,3L/N/PE |
||
AC Power Frequency ( Hz) |
50/60 |
50/60 |
50/60 |
||
Max. AC Output Current(A) |
10 |
12 |
15 |
||
Power Factor Range |
~1 (Adjusta |
ble from 0.8 leading |
to 0.8 lagging) |
||
OutputTHDi(@Nominal Output) |
<3% |
<3% |
<3% |
||
Genaral Data |
Operating Temperature |
-25C …+60C(>45C derating) |
|||
Range Topology |
Transformerless |
||||
Cooling Method |
Natural convection |
||||
Ingress Protection Rating |
IP65 |
||||
Relative Humidity |
0-100%, no condensation |
||||
DC Connection Type |
MC/ Amphenol/ Phoenix |
||||
AC Connection Type |
Plug-in Connector |
||||
Display |
LCD |
||||
Communication With Portal |
RS485 (WiFi/GPRS Optinal) |
||||
Communication With BMS |
CAN |
||||
Communication With Meter |
RS485 |
||||
Certification |
Safety |
IEC62109-1/-2 |
|||
EMC |
EN61000-6-1/-2/-3,IEC61000 |
||||
On- Grid standard |
AS4777.2:2020 ,NRS097-2-1:2017 ,PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4 |
Part Number |

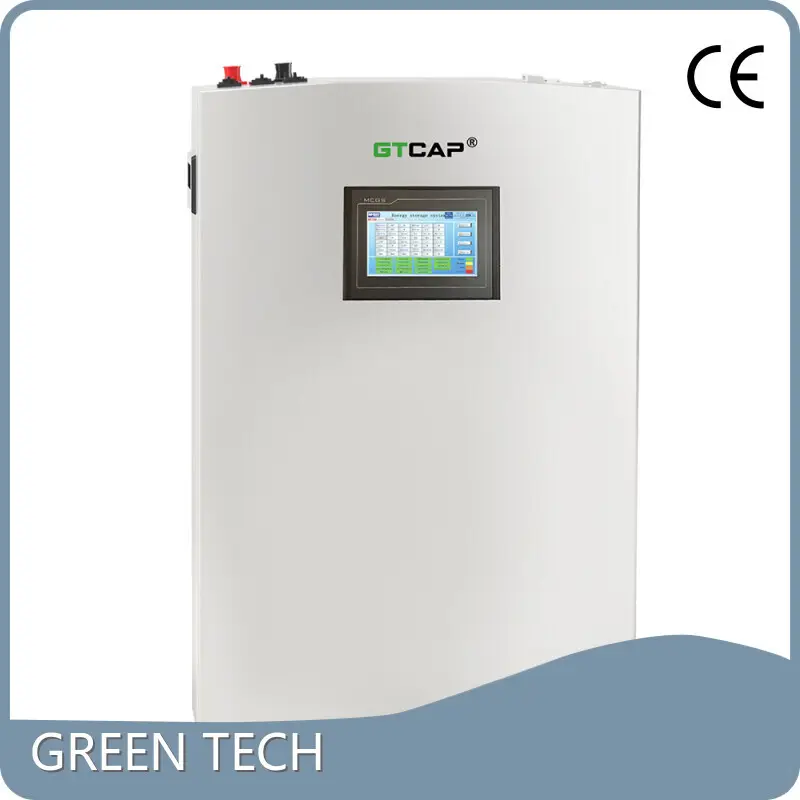

GTEM-400V14.4K-W |
GTEF-345V10K-W |
Energy storage |
14.4kWh |
10.3kWh |
Nominal Voltage |
400V/DC |
345.6V/DC |
Maximum Charge Voltage |
453V/DC |
390V/DC |
Discharge Cut-off Voltage |
292V/DC |
300V/DC |
ESR/AC @1KHz 50% SOC |
<150mΩ 50A |
<100mΩ 15A |
Max. Continuous Charge Current |
50A |
15A |
Max. Continuous Discharge Current |
50A |
30A |
Round Trip Efficiency |
96% |
97.7% |
Charge Temperature |
0 C~ + 5 5 C |
0 C~ + 4 5 C |
Discharge Temperature |
-20C~+60C |
-30C~+60C |
Self- discharge Rate |
2% per month |
2% per month |
Recommended Depth of Discharge |
≤90% |
≤90% |
Maximum Depth of Discharge |
100% |
100% |
Cooling Method |
Natural |
Natural |
Mounting Options |
Wall/floor |
Wall/floor |
Shell Material |
Metal & ABS plastic |
Metal & ABS plastic |
Communication |
CANbus |
CAN,RS485 |
Monitoring Data |
System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage |
|
Compliance Information |
|
|
Certificate Options |
IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014, EN 61000-3-3:2013, RoHS, UN38.3, MSDS |
Module type |
|
|
YLxxxDF54e/2(xxx=Pmax) |
|||||
Power output |
Pmax |
W |
390 |
395 |
400 |
405 |
410 |
415 |
Power output tolerances |
△Pmax |
W |
0/+5 | |||||
Module efficiency |
ηm |
% |
19.97 |
20.23 |
20.48 |
20.74 |
21.00 |
21.25 |
Voltage at Pmax |
Vmpp |
V |
30.27 | 30.42 | 30.56 | 30.71 | 30.86 | 31.00 |
Current at Pmax |
Impp |
A |
12.89 | 12.99 | 13.09 | 13.19 | 13.29 | 13.39 |
Open-circuit voltage |
Vac |
V |
36.80 |
36.90 |
37.00 |
37.10 |
37.20 |
37.30 |
Short-circuit voltage |
Isc |
A |
13.68 |
13.77 |
13.86 |
13.95 |
14.04 |
14.13 |
*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3
Power output |
ηm |
% |
296.85 |
300.63 |
304.34 |
308.17 |
312.03 |
315.80 |
Voltage at Pmax |
Vmpp |
V |
28.87 |
29.01 |
29.01 |
29.14 |
29.43 |
29.56 |
Current at Pmax |
Impp |
A |
10.28 |
10.36 |
10.44 |
10.52 |
10.60 |
10.68 |
Open- circuit voltage |
Voc |
V |
34.98 |
35.08 |
35.17 |
35.27 |
35.36 |
35.46 |
Short- circuit voltage |
Isc |
A |
11.02 |
11.09 |
11.17 |
11.24 |
11.31 |
11.38 |
*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.
Power output |
Pmax |
% |
426.86 |
432.33 |
437.80 |
443.27 |
448.75 |
454.22 |
Voltage at Pmax |
Vmpp |
V |
30.27 |
30.42 |
30.56 |
30.71 |
30.86 |
31.00 |
Current at Pmax |
Impp |
A |
14.10 |
14.21 |
14.33 |
14.43 |
14.54 |
14.65 |
Open- circuit voltage |
Voc |
V |
36.80 |
36.90 |
37.00 |
37.10 |
37.20 |
37.30 |
Short- circuit voltage |
Isc |
A |
14.97 |
15.07 |
15.17 |
15.27 |
15.37 |
15.47 |
*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2
Nominal operating cell temperature |
NOCT |
C |
39±2 |
Temperature coefficient of Pmax |
γ |
% / C |
-0.35 |
Temperature coefficient of Voc |
β |
% / C |
-0.28 0.05 |
*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2
Compatible Protocol: CAN, RS485
Company Feature
• Our company, built in has developed into an industry leader. We have complete equipment, strong technology force and high brand awareness after years of hard work.
• products are exported to many countries in Europe, Oceania, Africa, and America.
• is committed to offering the best service to meet the needs of customers.
