Best Price Electrical Energy Storage System for Sea Water

Company Advantages

· The whole manufacturing process of electrical energy storage system is well institutionalized and completed by highly precise testing and production equipment.

· The product is not only powerful but also durable, and has a longer life than other competing products.

· electrical energy storage system produced by has always established a trend in the industry.

Inverters 6kW-8kW-10kW

	Parameter		GT-EST06KH	GT-EST08KH	GT-EST10KH
Efficiency	Max Efficiency		>98 2%	>98 2%	>98 2%
PV Input	Max. PV input power(W)		7800	10400	13000
	Max. PV input voltage(V)		1000	1000	1000
	MPPT Operation Voltage Range (V)		180-950	180-950	180-950
	Number of MPPT/PV Strings		2/1	2/1	2/1
	Max. PV input current(A)		15/15	15/15	15/15
	Short- circuit current of PV input( A)		18/18	18/18	18/18
Battery	Max Input/Output Voltage(V)		550	550	550
	Operating Voltage Range(V)		180-550	180-550	180-550
	Max Charge/Discharge Current(A)		25/30	25/30	25/30
	Max Input/Output Power(W)		6000/6000	8000/8000	10000/10000
	Battery Type		Li-ion/Lead-acid
AC Input and Output	Rated Power(W)		6000	8000	10000
	Max. Apparent AC Power(VA)		6000	8000	10000
	Nominal AC Voltage(Vac)		380,3L/N/PE	380,3L/N/PE	380,3L/N/PE
	AC Power Frequency ( Hz)		50/60	50/60	50/60
	Max. AC Output Current(A)		10	12	15
	Power Factor Range		~1 (Adjusta	ble from 0.8 leading	to 0.8 lagging)
	OutputTHDi(@Nominal Output)		<3%	<3%	<3%
Genaral Data	Operating Temperature		-25C …+60C(>45C derating)
	Range Topology		Transformerless
	Cooling Method		Natural convection
	Ingress Protection Rating		IP65
	Relative Humidity		0-100%, no condensation
	DC Connection Type		MC/ Amphenol/ Phoenix
	AC Connection Type		Plug-in Connector
	Display		LCD
	Communication With Portal		RS485 (WiFi/GPRS Optinal)
	Communication With BMS		CAN
	Communication With Meter		RS485
Certification	Safety		IEC62109-1/-2
	EMC		EN61000-6-1/-2/-3,IEC61000
	On- Grid standard		AS4777.2:2020 ，NRS097-2-1:2017 ，PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4

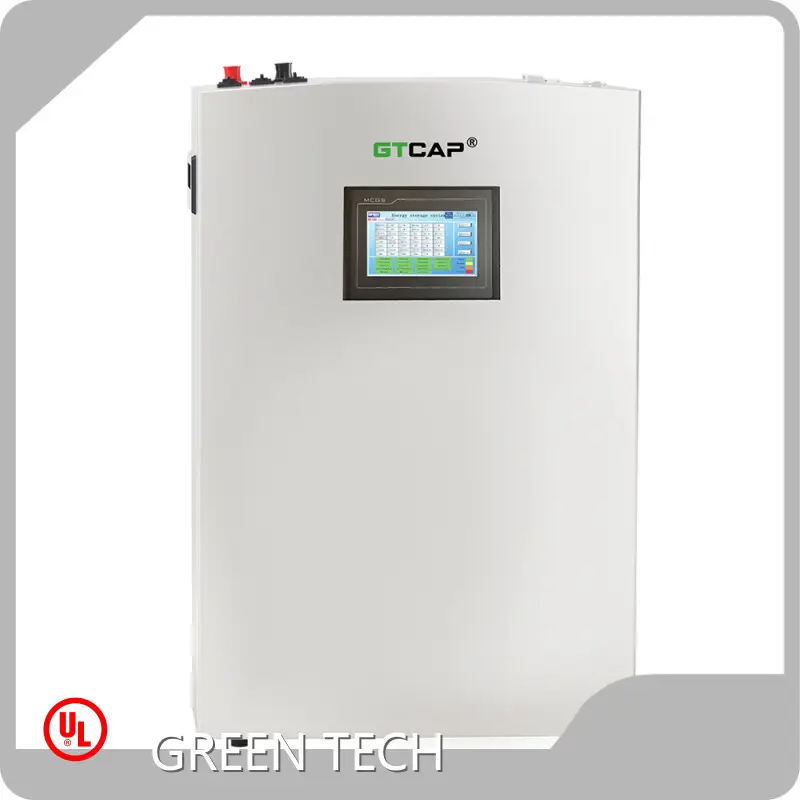

Battery energy storage system Capwall 400V14.4kWh/345V10kWh

Part Number	GTEM-400V14.4K-W	GTEF-345V10K-W
Energy storage	14.4kWh	10.3kWh
Nominal Voltage	400V/DC	345.6V/DC
Maximum Charge Voltage	453V/DC	390V/DC
Discharge Cut-off Voltage	292V/DC	300V/DC
ESR/AC @1KHz 50% SOC	<150mΩ 50A	<100mΩ 15A
Max. Continuous Charge Current	50A	15A
Max. Continuous Discharge Current	50A	30A
Round Trip Efficiency	96%	97.7%
Charge Temperature	0 C~ + 5 5 C	0 C~ + 4 5 C
Discharge Temperature	-20C~+60C	-30C~+60C
Self- discharge Rate	2% per month	2% per month
Recommended Depth of Discharge	≤90%	≤90%
Maximum Depth of Discharge	100%	100%
Cooling Method	Natural	Natural
Mounting Options	Wall/floor	Wall/floor
Shell Material	Metal & ABS plastic	Metal & ABS plastic
Communication	CANbus	CAN,RS485
Monitoring Data	System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage
Compliance Information
Certificate Options	IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014,  EN 61000-3-3:2013,  RoHS, UN38.3, MSDS

Solar Panel 390-415W

STC*

NOCT*

STC*

Thermal characteristics

Module type			YLxxxDF54e/2(xxx=Pmax)
Power output	Pmax	W	390	395	400	405	410	415
Power output tolerances	△Pmax	W				0/+5
Module efficiency	ηm	%	19.97	20.23	20.48	20.74	21.00	21.25
Voltage at Pmax	Vmpp	V	30.27	30.42	30.56	30.71	30.86	31.00
Current at Pmax	Impp	A	12.89	12.99	13.09	13.19	13.29	13.39
Open-circuit voltage	Vac	V	36.80	36.90	37.00	37.10	37.20	37.30
Short-circuit voltage	Isc	A	13.68	13.77	13.86	13.95	14.04	14.13

*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3

Power output	ηm	%	296.85	300.63	304.34	308.17	312.03	315.80
Voltage at Pmax	Vmpp	V	28.87	29.01	29.01	29.14	29.43	29.56
Current at Pmax	Impp	A	10.28	10.36	10.44	10.52	10.60	10.68
Open- circuit voltage	Voc	V	34.98	35.08	35.17	35.27	35.36	35.46
Short- circuit voltage	Isc	A	11.02	11.09	11.17	11.24	11.31	11.38

*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.

Power output	Pmax	%	426.86	432.33	437.80	443.27	448.75	454.22
Voltage at Pmax	Vmpp	V	30.27	30.42	30.56	30.71	30.86	31.00
Current at Pmax	Impp	A	14.10	14.21	14.33	14.43	14.54	14.65
Open- circuit voltage	Voc	V	36.80	36.90	37.00	37.10	37.20	37.30
Short- circuit voltage	Isc	A	14.97	15.07	15.17	15.27	15.37	15.47

*Bifaciality coefficient is 70% ±5%，rear irradiance is 135W.m-2

Nominal operating cell temperature	NOCT	C	39±2
Temperature coefficient of Pmax	γ	% / C	-0.35
Temperature coefficient of Voc	β	% / C	-0.28 0.05

*Bifaciality coefficient is 70% ±5%，rear irradiance is 135W.m-2

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
