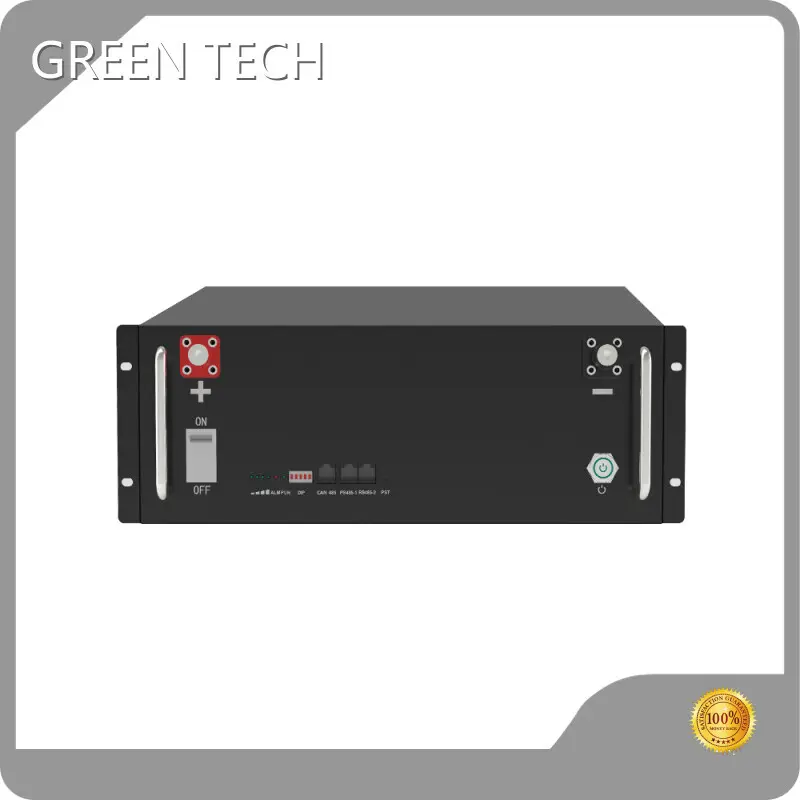

Brand Battery Energy Storage Supplier-1

Company Advantages

· battery energy storage is made of premium raw materials that are sourced from trusted vendors.

· This product is of high quality, which is the result of conducting strict quality inspections.

· has established efficient operations and loyal customers basis.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-48V5000-E
Energy storage	5.0kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	37.8Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Peak Current	208A
Cooling Method	Natural
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Up to 10sets
Series-Parallel Connection	Not allowed

Weight	62kg
Dimensions(WxDxH)	475x665x177(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· puts great energy on R&D and production of battery energy storage.

· Our factory is equipped with the industry's most advanced equipment. They are mainly imported from developed countries such as Germany. They help us achieve both outstanding production quality and exceptional operational efficiency.

· is committed to improving quality continuously. Inquire!

Product Details

battery energy storage is perfect in every detail.

Application of the Product

battery energy storage can meet the different needs of customers.

can provide customers with one-stop solutions of high quality, and meet customers' needs to the greatest extent.
