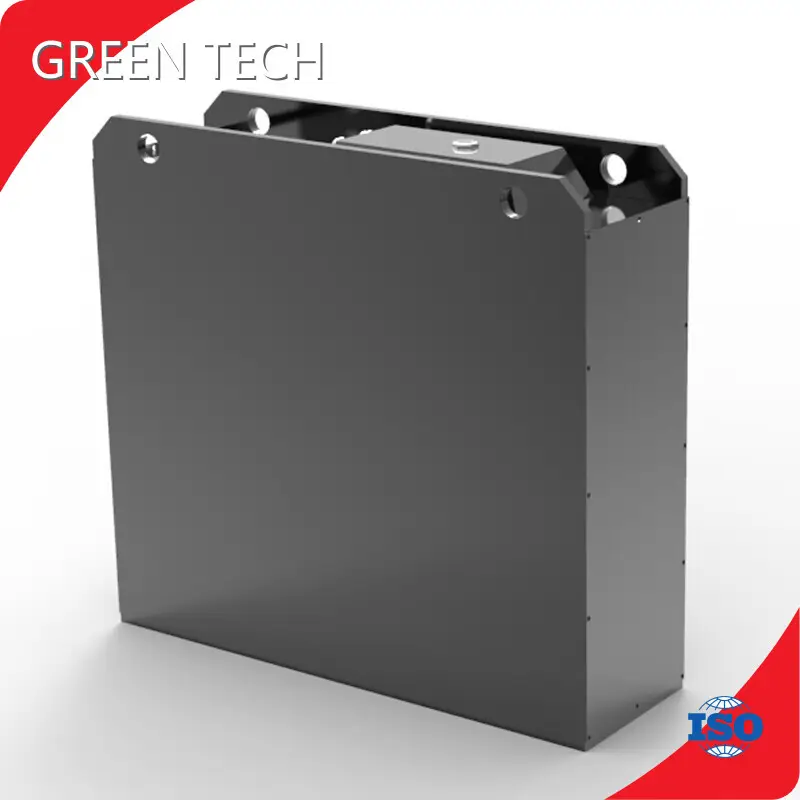

Product details of the graphene battery manufacturer
Product Introduction
All the raw materials of graphene battery manufacturer are in line with international standards. Quality, functionality and high standard are always the prime keywords in its production. Ensuring each detail of graphene battery manufacturer in a good condition is very important for the quality check.
Part Number |
GTEG-23V4180-F |
4.18kWh |
|
Nominal Capacity |
182Ah |
Nominal Voltage |
23Vdc |
Absolute Maximum Voltage |
28Vdc |
Cut-off Voltage (discharging) |
18Vdc |
Configuration |
10S13P |
Pack resistance |
< 10 mΩ |
Continuous Charge Current |
150A |
Continuous Discharge Current |
150A |
Peak Discharge Current |
300A |
Recommended Depth of Discharge |
90% |
Maximum Depth of Discharge |
100% |
Cooling |
Natural cooling |
Ingress Protection |
IP55 |
Storage Humidity |
25% ~ 95%RH |
Operating Humidity |
0 – 90% RH |
Storage Temperature |
-20℃~40 ℃ |
Weight |
225kg |
Dimensions(WxDxH) |
650*195*600mm |
Mount Options |
Wall/ floor |
Compatible Protocol: CAN, RS485
Company Feature
• Our company promises a strong protection in product storage, packaging and logistics and other links. In the after-sales service, we provide professional customer service to answer all kinds of doubts of customers. The product can be replaced at all times once it is confirmed to have quality problems.
• We have our own technical research and development team with experienced technical engineers. We are dedicated to every aspect of design, production and development.
• Our company sells products to many central cities in China, and is stationed in many large supermarkets and stores. We also export our products to North America, Europe, Australia and Southeast Asia.
