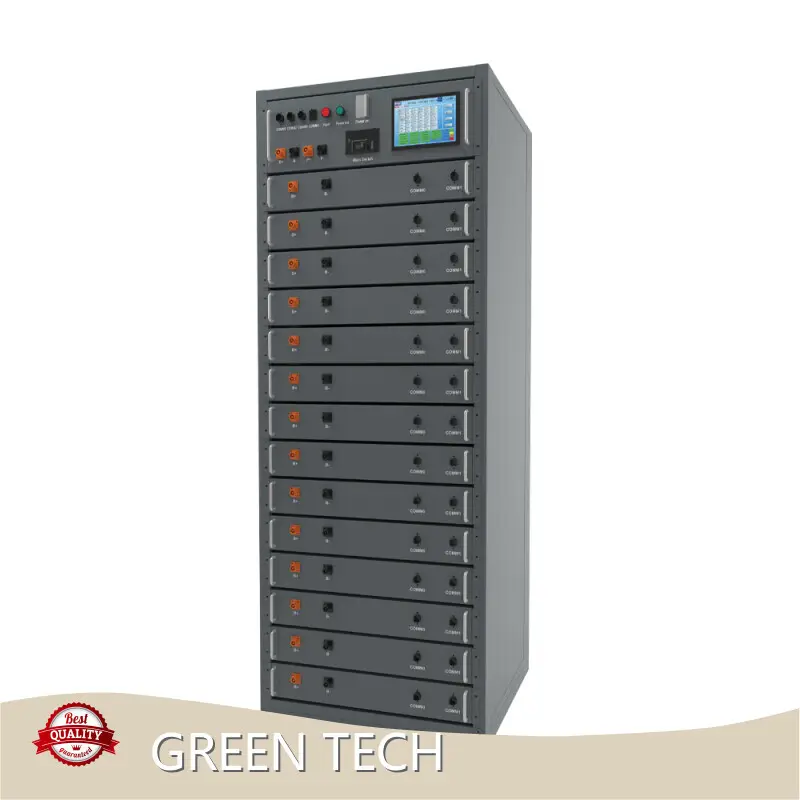

Bulk Production Battery Pack for Household EF Series for Agriculture

Weight:
1560kg
Series:
EF Series
Nominal Voltage:
716.8Vdc
Max. Continuous Charge Current:
150A
Discharge Cut-off Voltage:
604.8Vdc
Inquiry

Product details of the battery pack for household


Product Information

With the support from our experts, battery pack for household manufactured & designed using modern tools & equipment in strict compliance with the industry standards. Patented technology guarantees a flexible applicability of this product. . is a professional battery pack for household maker which enjoys a better reputation among the customers.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEF-716V100K-R

Energy storage

150.5kWh

Nominal Voltage

716.8Vdc

Maximum Charge Voltage

806.4Vd.c (Recommended high voltage limit:784V)

Discharge Cut-off Voltage

604.8Vd.c (Recommended low voltage limit: 627.2V)

ESR/AC @1KHz 50% SOC

<150mΩ

Max. Continuous Charge Current

150A

Max. Continuous Discharge Current

150A

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

10,000 times(70%EOL)

Recommended Depth of Discharge

≤ 90%

Maximum Depth of Discharge

100%

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

Terminal

Large power energy storage terminals

Environmental Protection

IP20 Indoor

Shell Material

Metal

Parallel Connection

 No limited ( add controller box )

communication

CAN, RS485, LAN

Weight

1560kg

Dimensions(WxDxH)

801x832x2166(mm)

Mount Options

On floor

Certificate Options
