Bulk Production Household Battery Pack 51.8Vdc Company

Product details of the household battery pack

Quick Overview

The raw materials of household battery pack are highly secured by selecting reliable suppliers. The materials used have determined the durability and performance of this product. The household battery pack produced by our company can be applied to different fields and scenarios. So the different requirements of different people can be satisfied. The high reputation from customers confirms the high quality of household battery pack.

Product Information

produces household battery pack according to national standards, and the products are of good quality. The specific details are as follows.

Product Parameters

General Characteristics

Mechanical Specifications

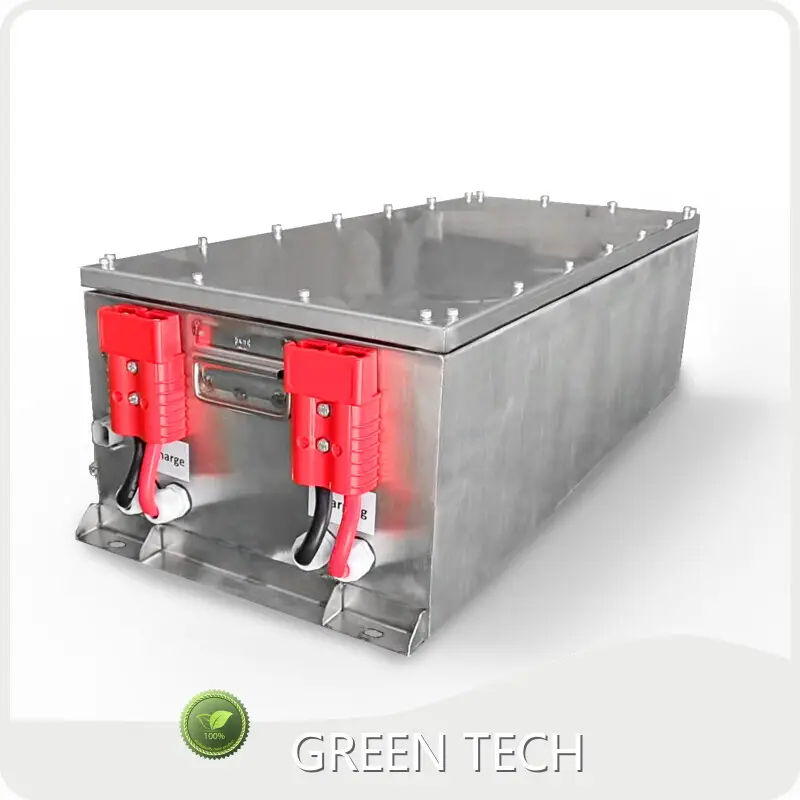

Part Number	GTEM-48V10k-B
Energy storage	10kWh
Nominal Voltage	51.8Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Stainless steel
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	82kg
Dimensions(WxDxH)	1124x400x256(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V10K-B Battery
