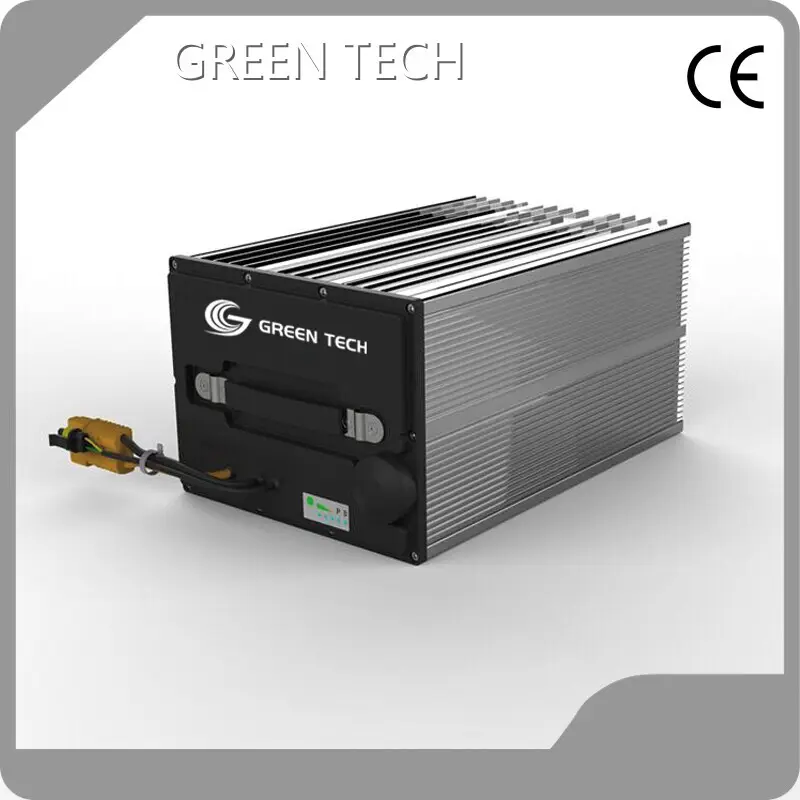

Capacitor Bank 1248Wh

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V1248-M
Energy storage	1248Wh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<12mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	15.5kg
Dimensions(WxDxH)	230x180x300(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The offered capacitor bank is produced using modern technology in conformance with the set industry standards.

· The quality inspection is the prerequisite for the high quality product.

· has an advantage comparing with other capacitor bank companies in terms of finance, quality and fame.

Company Features

· has achieved great success in the R&D and manufacture of capacitor bank. We are widely appraised for our ability.

· Our finest capacitor bank are produced by our introduced advanced machine.

· All staff keeps our clients in mind and does the utmost to satisfy customers. Call!

Application of the Product

capacitor bank of has very extensive application in different scenarios.

has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.
