Capacitor Bank Brand Directly Sale

Product Parameters

General Characteristics

Mechanical Specifications

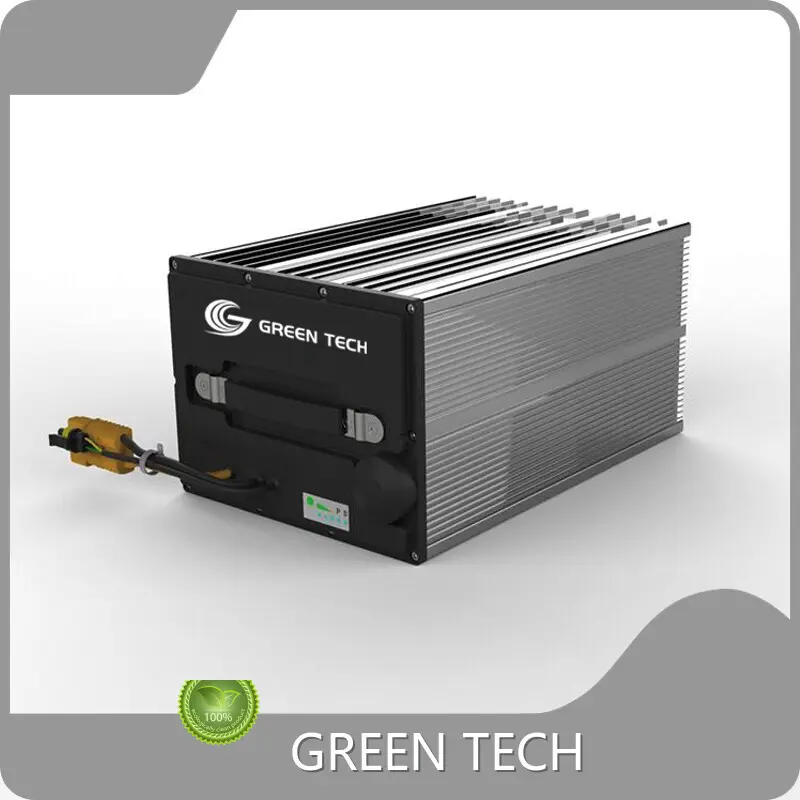

Part Number	GTEM-48V1920-M
Energy storage	1920Wh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	22kg
Dimensions(WxDxH)	230x180x430(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· With innovative design and fine craftsmanship, capacitor bank is always ahead of the competition.

· The quality of this product is checked at every different level under the supervision of quality inspector to ensure the superior quality.

· can guarantee a qualified international customer service.

Company Features

· is China's leading capacitor bank provider and the preferred brand for customers.

· has fully developed its own strength in developing new capacitor bank.

· We are working hard to drive progress towards a sustainable future. Our efforts in promoting sustainable development include introducing management systems in line with international standards for the environment. For example, any production waste will be seriously treated to guarantee no harmful emission.

Application of the Product

The capacitor bank produced by is widely used.

With a focus on customers' potential needs, has the ability to provide one-stop solutions.
