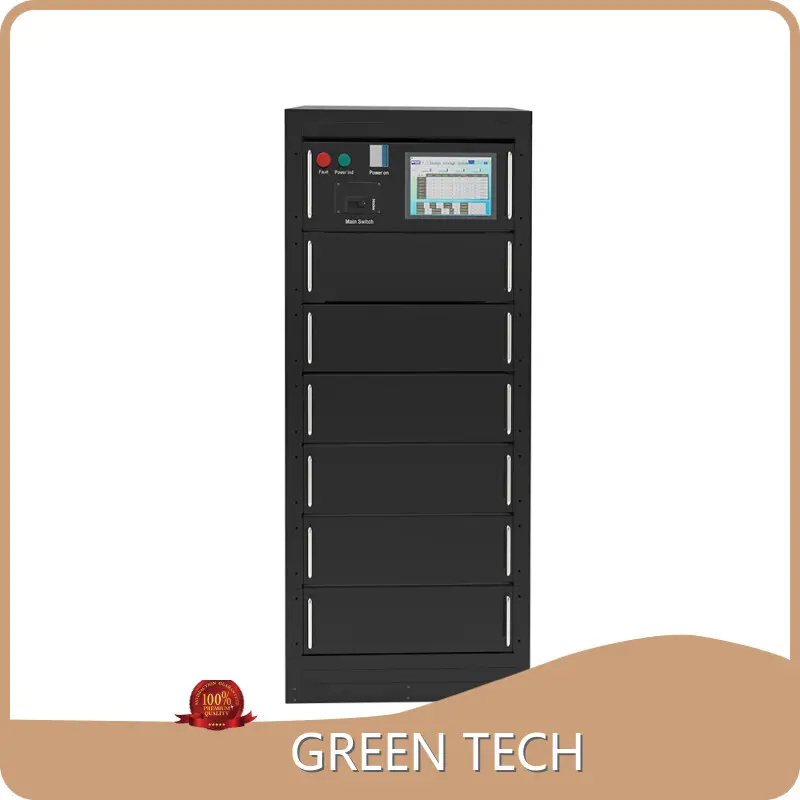

Capacitor Bank Panel Manufacture GTEM-800V57K-R 1

Capacitor Bank Panel Manufacture GTEM-800V57K-R 2

Capacitor Bank Panel Manufacture GTEM-800V57K-R

Series:

EM Series

Part Number:

GTEM-800V57K-R

Nominal Voltage:

800Vdc

Max. Continuous Discharge Current:

150A

Energy storage:

57kWh

Inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-800V57K-R
Energy storage	57kWh
Nominal Voltage	800Vdc
Maximum Charge Voltage	900Vdc
Discharge Cut-off Voltage	626Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, LAN

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· capacitor bank panel is designed to provide unmatched availability.

· In order to effectively control the quality of the product, our team takes an effective measure to ensure this.

· The product is popular among old and new customer and boasts a promising market application prospect.

Company Features

· by is a well-known brand in China and has considerable influence in the capacitor bank panel field.

· The technology competency of has reached industry standards.

· places customer service at the heart of everything we do. Please contact us!

Application of the Product

Our capacitor bank panel is widely used in industry.

With a focus on is dedicated to providing reasonable solutions for customers.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
