Capacitor Bank Price Company

Product details of the capacitor bank price

Quick Detail

Scientific production: the production of capacitor bank price is scientifically managed. A strict real-time monitoring system is carried out during each production step to make sure zero error of its quality. The product has been inspected in conformity with international quality standards. Our capacitor bank price has a wide range of applications. has formed a sound sales network, service system and quality management system.

Product Introduction

capacitor bank price has been further improved based on advanced technology, as reflected in the following aspects.

Inverters 6kW-8kW-10kW

	Parameter		GT-EST06KH	GT-EST08KH	GT-EST10KH
Efficiency	Max Efficiency		>98 2%	>98 2%	>98 2%
PV Input	Max. PV input power(W)		7800	10400	13000
	Max. PV input voltage(V)		1000	1000	1000
	MPPT Operation Voltage Range (V)		180-950	180-950	180-950
	Number of MPPT/PV Strings		2/1	2/1	2/1
	Max. PV input current(A)		15/15	15/15	15/15
	Short- circuit current of PV input( A)		18/18	18/18	18/18
Battery	Max Input/Output Voltage(V)		550	550	550
	Operating Voltage Range(V)		180-550	180-550	180-550
	Max Charge/Discharge Current(A)		25/30	25/30	25/30
	Max Input/Output Power(W)		6000/6000	8000/8000	10000/10000
	Battery Type		Li-ion/Lead-acid
AC Input and Output	Rated Power(W)		6000	8000	10000
	Max. Apparent AC Power(VA)		6000	8000	10000
	Nominal AC Voltage(Vac)		380,3L/N/PE	380,3L/N/PE	380,3L/N/PE
	AC Power Frequency ( Hz)		50/60	50/60	50/60
	Max. AC Output Current(A)		10	12	15
	Power Factor Range		~1 (Adjusta	ble from 0.8 leading	to 0.8 lagging)
	OutputTHDi(@Nominal Output)		<3%	<3%	<3%
Genaral Data	Operating Temperature		-25C …+60C(>45C derating)
	Range Topology		Transformerless
	Cooling Method		Natural convection
	Ingress Protection Rating		IP65
	Relative Humidity		0-100%, no condensation
	DC Connection Type		MC/ Amphenol/ Phoenix
	AC Connection Type		Plug-in Connector
	Display		LCD
	Communication With Portal		RS485 (WiFi/GPRS Optinal)
	Communication With BMS		CAN
	Communication With Meter		RS485
Certification	Safety		IEC62109-1/-2
	EMC		EN61000-6-1/-2/-3,IEC61000
	On- Grid standard		AS4777.2:2020 ，NRS097-2-1:2017 ，PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4

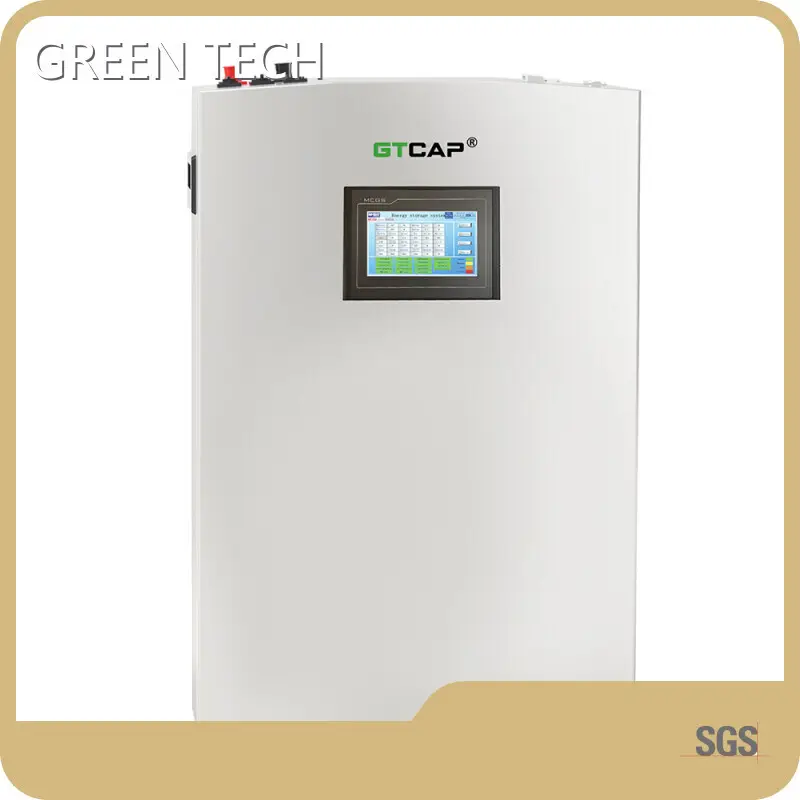

Battery energy storage system Capwall 400V14.4kWh/345V10kWh

Part Number	GTEM-400V14.4K-W	GTEF-345V10K-W
Energy storage	14.4kWh	10.3kWh
Nominal Voltage	400V/DC	345.6V/DC
Maximum Charge Voltage	453V/DC	390V/DC
Discharge Cut-off Voltage	292V/DC	300V/DC
ESR/AC @1KHz 50% SOC	<150mΩ 50A	<100mΩ 15A
Max. Continuous Charge Current	50A	15A
Max. Continuous Discharge Current	50A	30A
Round Trip Efficiency	96%	97.7%
Charge Temperature	0 C~ + 5 5 C	0 C~ + 4 5 C
Discharge Temperature	-20C~+60C	-30C~+60C
Self- discharge Rate	2% per month	2% per month
Recommended Depth of Discharge	≤90%	≤90%
Maximum Depth of Discharge	100%	100%
Cooling Method	Natural	Natural
Mounting Options	Wall/floor	Wall/floor
Shell Material	Metal & ABS plastic	Metal & ABS plastic
Communication	CANbus	CAN,RS485
Monitoring Data	System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage
Compliance Information
Certificate Options	IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014,  EN 61000-3-3:2013,  RoHS, UN38.3, MSDS

Solar Panel 390-415W

STC*

NOCT*

STC*

Thermal characteristics

Module type			YLxxxDF54e/2(xxx=Pmax)
Power output	Pmax	W	390	395	400	405	410	415
Power output tolerances	△Pmax	W				0/+5
Module efficiency	ηm	%	19.97	20.23	20.48	20.74	21.00	21.25
Voltage at Pmax	Vmpp	V	30.27	30.42	30.56	30.71	30.86	31.00
Current at Pmax	Impp	A	12.89	12.99	13.09	13.19	13.29	13.39
Open-circuit voltage	Vac	V	36.80	36.90	37.00	37.10	37.20	37.30
Short-circuit voltage	Isc	A	13.68	13.77	13.86	13.95	14.04	14.13

*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3

Power output	ηm	%	296.85	300.63	304.34	308.17	312.03	315.80
Voltage at Pmax	Vmpp	V	28.87	29.01	29.01	29.14	29.43	29.56
Current at Pmax	Impp	A	10.28	10.36	10.44	10.52	10.60	10.68
Open- circuit voltage	Voc	V	34.98	35.08	35.17	35.27	35.36	35.46
Short- circuit voltage	Isc	A	11.02	11.09	11.17	11.24	11.31	11.38

*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.

Power output	Pmax	%	426.86	432.33	437.80	443.27	448.75	454.22
Voltage at Pmax	Vmpp	V	30.27	30.42	30.56	30.71	30.86	31.00
Current at Pmax	Impp	A	14.10	14.21	14.33	14.43	14.54	14.65
Open- circuit voltage	Voc	V	36.80	36.90	37.00	37.10	37.20	37.30
Short- circuit voltage	Isc	A	14.97	15.07	15.17	15.27	15.37	15.47

*Bifaciality coefficient is 70% ±5%，rear irradiance is 135W.m-2

Nominal operating cell temperature	NOCT	C	39±2
Temperature coefficient of Pmax	γ	% / C	-0.35
Temperature coefficient of Voc	β	% / C	-0.28 0.05

*Bifaciality coefficient is 70% ±5%，rear irradiance is 135W.m-2

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

All-high

Company Advantages

Situated in is a company that basically produces Our company holds the value of 'professionalism, integrity, excellence, and mutual benefit'. During the development, we greatly focus on team ship, hard work, tenacity and persistence. In addition, we abide by the principle of 'demand-oriented, customer first'. Our goal is to build a brand respected by the industry and trusted by customers. During the business operation, our company has skilled technical personnel to develop our products. And our experienced personnel are in charge of our company's management. All that guarantees the continuous development for our company. Through problem analysis and reasonable planning, we provide our customers with an effective one-stop solution to the actual situation and needs of customers.
Look forward to inquiries from customers in various industries
