insists on using first-class raw material. It is qualified with many international certification. battery for household can be used in a variety of situations. This product sells well in the global market and is widely considered to be of promising market prospect.

Product Introduction

Compared with ordinary products, battery for household has the following advantages in details

Product Parameters

General Characteristics

Mechanical Specifications

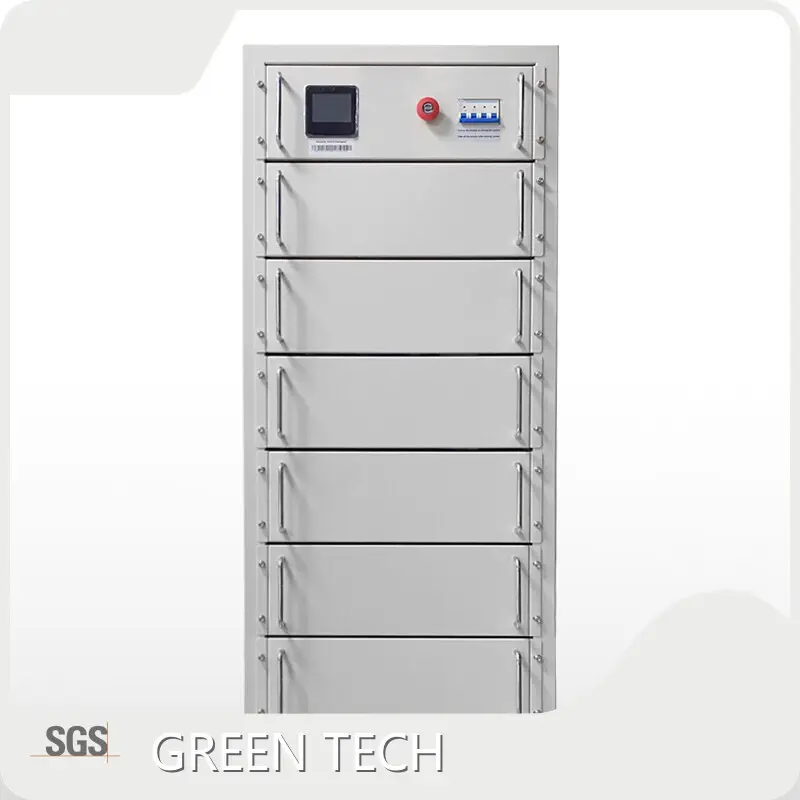

Part Number	GTEM-700V25k-R
Energy storage	25.3kWh
Nominal Voltage	702Vdc
Maximum Charge Voltage	83.16Vdc
Discharge Cut-off Voltage	554.4Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	100A
Discharge rate	2.77C
Max. Continuous Output Power	70kW
*Charge Temperature1**	0℃~+55℃
*Discharge Temperature2**	-30℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Natural cooling
Shell Material	Metal

Weight	420kg
Dimensions(WxDxH)	560x732x1600(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Introduction

( located in is a professional company. We are mainly engaged in the business of Our company advocates the enterprise spirit of 'honesty, pragmatism, innovation and excellence'. we will cooperate with colleagues in the industry to create a better future based on the principle of sincere cooperation and mutual benefit. has an elite team with modern corporate quality, whose team members are clearly aware of their own duties. This guarantees the production to be efficient and products to be high-quality. provides customers with unique solutions to meet their individual needs.
We provide you with high-quality products and look forward to your inquiry.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
