Cost-effectivehousehold Solar Batteries Manufacture

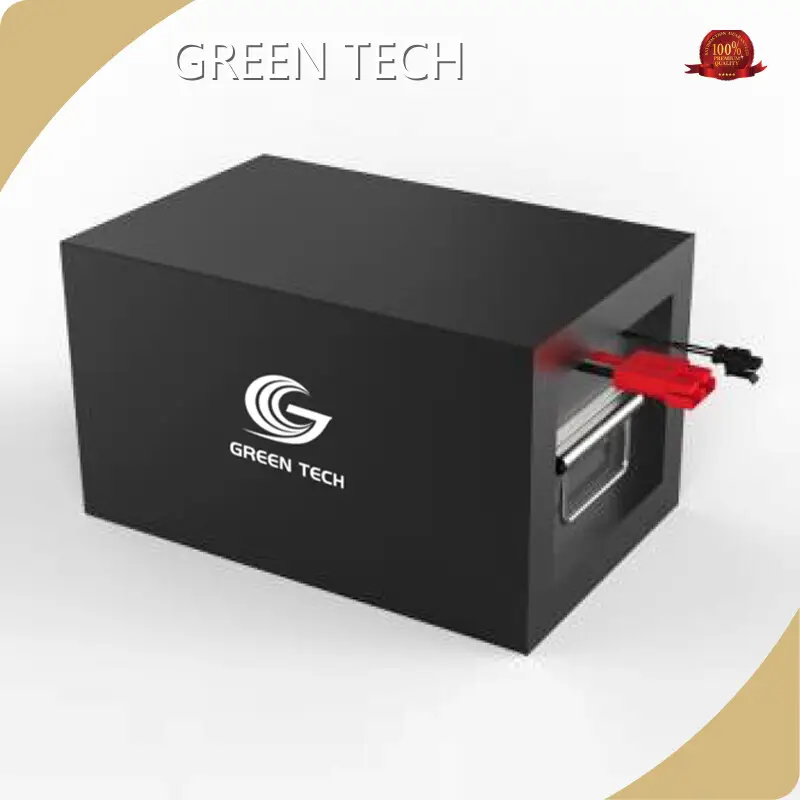

Product details of the household solar batteries

Product Information

The modern design of household solar batteries is its one of biggest advantages. We set a higher and higher standard for the quality of this product. With product quality as the center, insists on the spirit of independent innovation.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-24V3200-E
Energy storage	3.2kWh
Nominal Voltage	24Vdc
Maximum Charge Voltage	29Vdc
Discharge Cut-off Voltage	20Vdc
ESR/AC @1KHz 50% SOC	<15Ω
Max. Continuous Charge Current	40A
Max. Continuous Discharge Current	40A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Round Trip Efficiency*1	96%
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell`s voltage

Weight	20kg
Dimensions(WxDxH)	347x224x200mm
Mount Options	Wall/ floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Feature

• After years of development, has a mature management model and advanced production technology.
• Our company actively explores product sales channels and establishes a sound marketing network. Our products are not only sold to many provinces and cities in China, but also exported to East Asia and South Asia.
• Good geographic location, excellent traffic conditions, and telecommunications make contribution to sustainable development.
• has established an experienced team consisting of professionals at all ages. They provide internal motivation for our steady development.
Hello, thanks for your attention to this site! If you are interested in products or services, you can contact us directly. We keep ourselves open to new partnerships.
