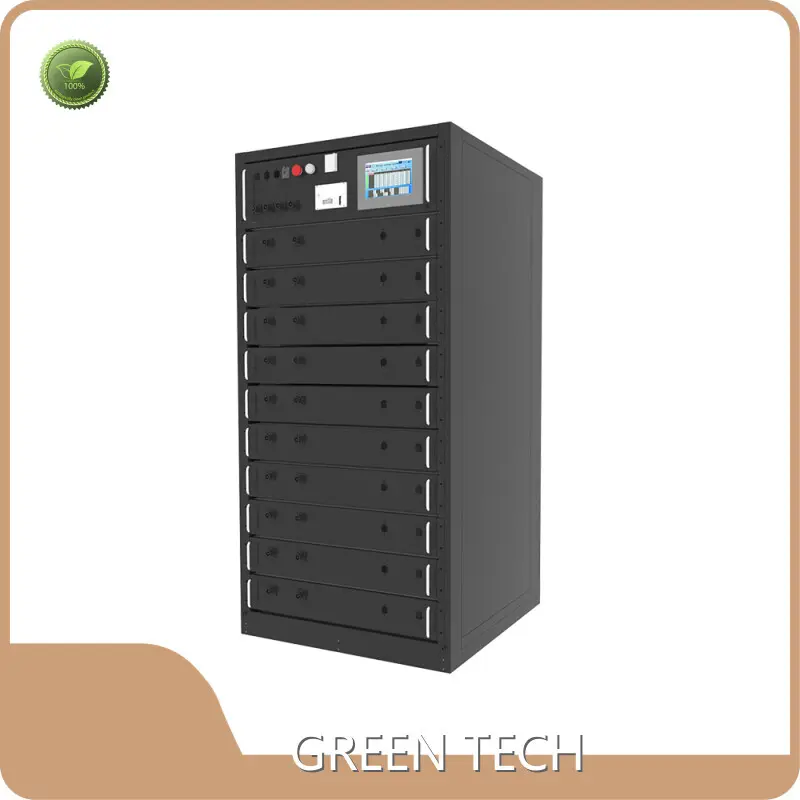

Custom Battery for Household 210Ah

Product details of the battery for household

Product Information

battery for household wins good reputation for its selected materials and well-made features. Evaluated by domestic experts, its performance has achieved the international advanced level. is well-appreciated by customers for its not only the battery for household but also the service.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-512V50KW/100KWH-R
Energy storage	107.5kWh
Nominal Voltage	512Vd.c
Maximum Charge Voltage	576Vd.c
Discharge Cut-off Voltage	448Vd.c
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	120A
Max. Continuous Discharge Current	120A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	10,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	IP20 Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, TCP

Weight	1315kg
Dimensions(WxDxH)	801x832x1629(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantage

• continuously maintains relationships with regular customers and keeps ourselves to new partnerships. In this way, we construct a nationwide marketing network to spread the positive brand culture. Now we enjoy a good reputation in the industry.
• Our company has a strong technical team engaged in independent innovation. Meanwhile, we actively strengthen cooperation with domestic research institutes. Apart from that, we recruit well-known experts in the industry as senior consultants. All that provides strong technical support for our development.
• geographic location is superior with multiple traffic lines. This provides convenience for the outward transportation and guarantees the stable supply of br /> • Keeping up with the development trend of the Internet era, our company changed the business mode. We actively build offline marketing networks, expand online sales channels and opening official stores on several mainstream e-commerce platforms. Therefore, we gained a rapid growth of sales and the expansion of sales range.
If you are interested in our products or services, please contact quickly. We look forward to your call.
