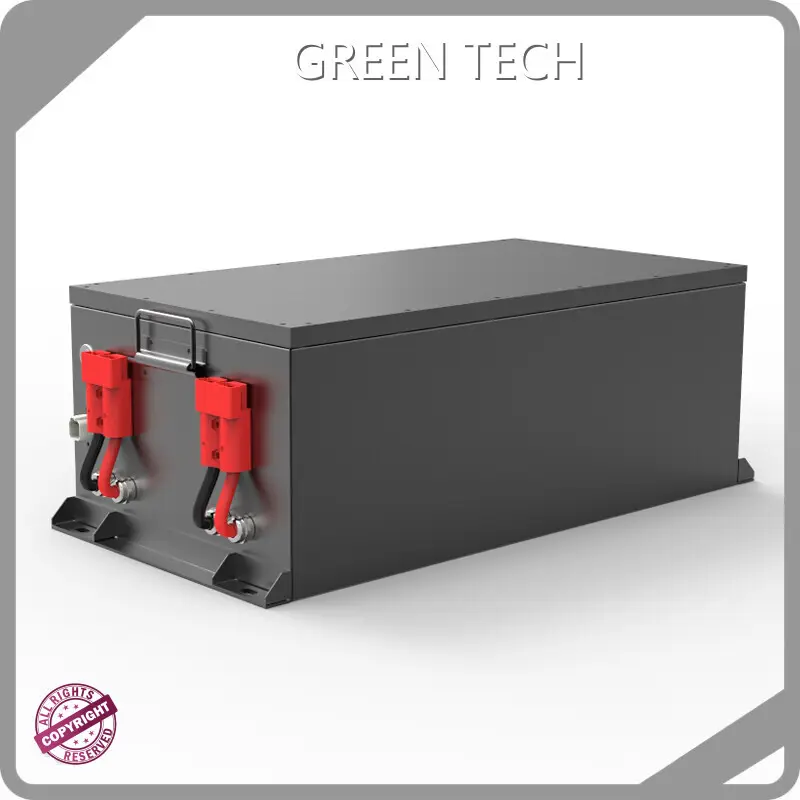

Custom Battery for Household GTEM-48V6500-G

Company Advantages

· The production of battery for household adopts standardized production technology.

· The optimum quality and excellent performance makes the product the most sought-after product.

· Through a rigorous quality control system, has ensured the stability of all products' quality.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V6500-G
Energy storage	6.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	75kg
Dimensions(WxDxH)	940x400x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· Depending on years of development, has grown from a small producer to one of the most competitive manufacturers of battery for household.

· With our well-selected materials, our battery for household has gained higher recommendation than other similar products. The success of can not be achieved without the battery for household as a basic factor.

· aims to be the best manufacturer of battery for household in the international market. Inquiry!

Product Details

Choose our battery for household for the following reasons.

Application of the Product

The battery for household produced by our company is widely used in various industries and fields.

is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.

Product Comparison

Compared with similar products, the battery for household of is more strict in the selection of raw materials. The specific aspects are as follows.

Enterprise Advantages

We have a professional technical team to provide customers with the best technical support and guarantee in the process of our development and growth.

insists on the service principle to be active, efficient and considerate. We are dedicated to providing professional and efficient services.

We insist on keeping up with the pace of the times, and advocating the business philosophy of 'honest and people-oriented'.

established in has mastered advanced technology in industry. With the growth of years, we can well meet customer requirements now.

has a sales network covering the whole country. Some products are exported to America, Africa, Europe, and other countries and regions. Now we are an influential company in the industry.
