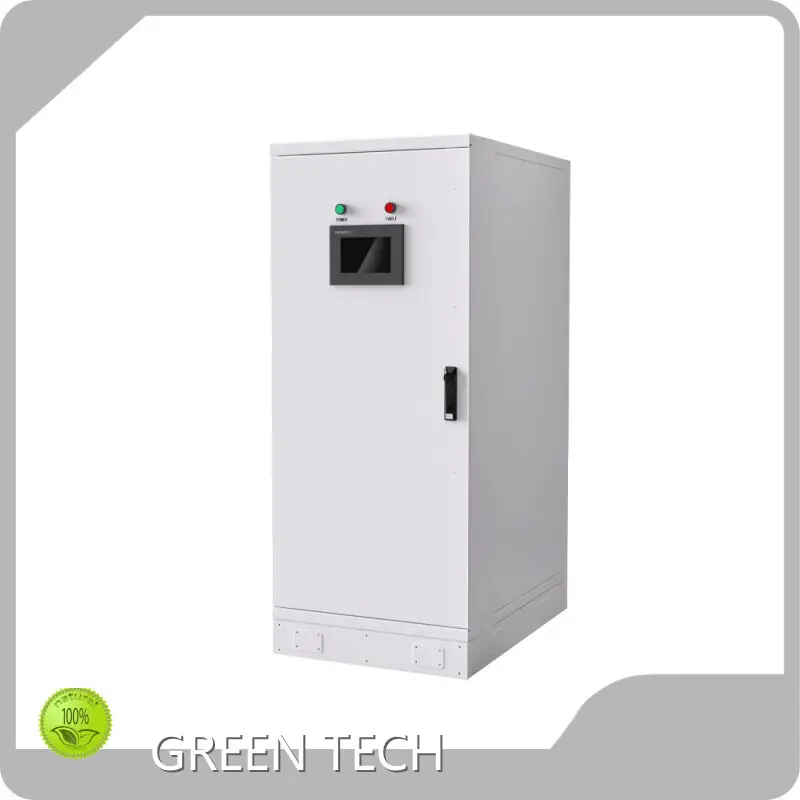

Custom Capacitor Bank Panel 72Ah

Company Advantages

· capacitor bank panel is manufactured in complete compliance with the set industry standards using premium quality raw material.

· The product is user-friendly and has long-lasting performance.

· is the pioneer in manufacturing and designing capacitor bank panel industry.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-800V96KW-57KWH-R
Energy storage	57.5kWh
Nominal Voltage	799.2Vd.c
Maximum Charge Voltage	896.4Vd.c
Discharge Cut-off Voltage	648Vd.c
ESR/AC @1KHz 50% SOC	<70mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	120A
Cooling Method	Natural
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal
Monitoring Data	System voltage,current, temperature,SOC,SOH,cell’s voltage
Parallel Connection	Up to 16 parallel connections allowed
Storage Conditions	-20℃~+40℃ 25%~95%RH SOC>30%, one full charge needed per two months

Weight	550kg
Dimensions(WxDxH)	600x870x1450（mm）

Certificate&Compatible Protocol

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· is highly expert in the design and manufacture of capacitor bank panel. We have been considered as one of the leading manufacturers.

· Our technicians have been always devoted themselves into developing and designing capacitor bank panel.

· We understand sustainability as an affirmative action to minimize the negative impact on the environment. This is to be created in close dialogue and partnership with all of our stakeholders. For example, we promote fair and safe working conditions and green procurement in the supply chain.

Product Comparison

capacitor bank panel has better performances in the following aspects.
