The application of advanced equipment gives graphene battery manufacturer a fine finished. Prior to delivery, the product must be rigorously inspected to ensure high quality in all aspects of performance, availability and more. The product increasingly becomes practical and applicable in the industry.

Product Parameters

General Characteristics

Mechanical Specifications

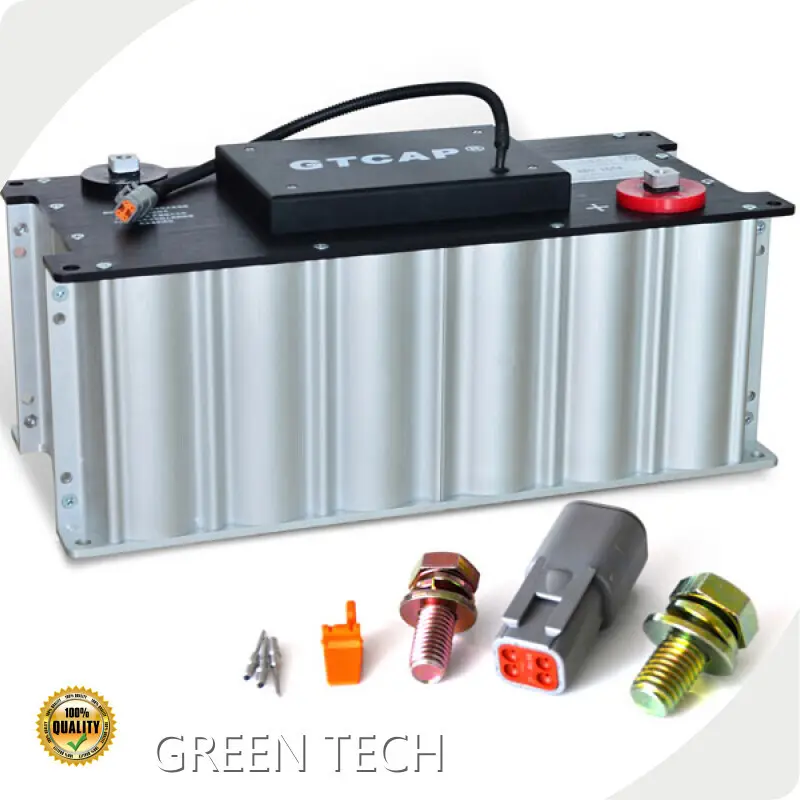

Part Number	GTSM-48V165FUS
Nominal capacitance	125 F
Capacitance tolerance	-10%~~+20%
Rated voltage	48V
Maximum absolute voltage	51V
ESR, DC	5 mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range (Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8 Screw Hole
Negative Terminal	M10 Screw Hole
Recommended torque - terminal	20/30 Nm
Vibration specification	SAE J2380 ISO16750-2, T14
Shock specification	SAE J2464
Colling	Natural Convection

Weight	20kg
Environmental protection	IP65
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)
