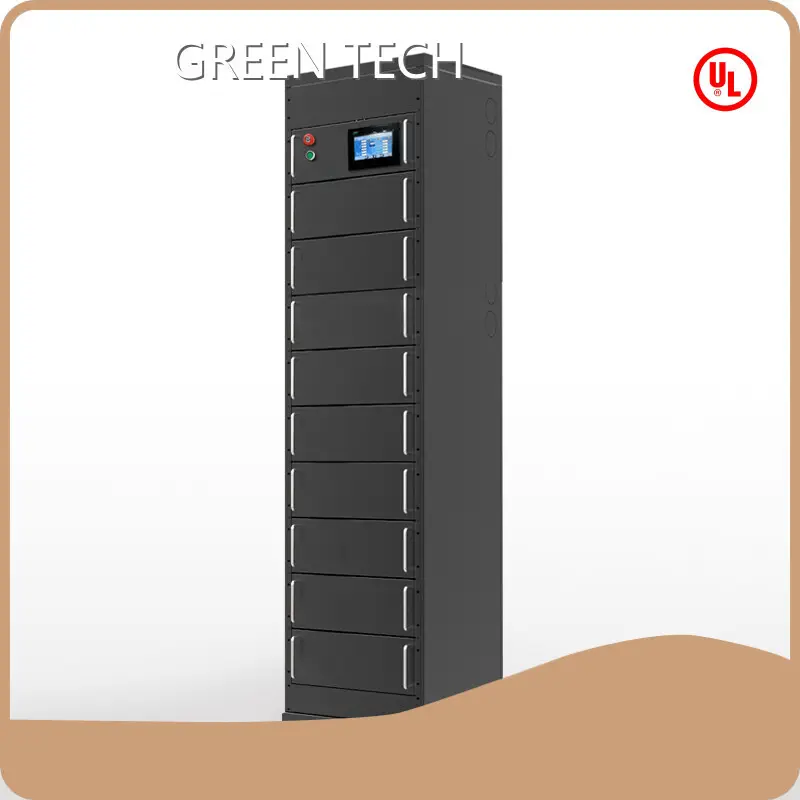

Custom Graphene Battery Price 560x700x1804(mm)

Company Advantages

· In order to strictly control quality, selects graphene battery price as raw material.

· Buying our competitive-priced graphene battery price doesn't mean that qulaity is not reliable.

· Having paid much attention to the quality of graphene battery price, is more confident in this industry.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-700V39K-R
Energy storage	39.4kWh
Nominal Voltage	703.8Vdc
Maximum Charge Voltage	856.8Vdc
Discharge Cut-off Voltage	642.6Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	280A
Max. Continuous Discharge Current	280A
Discharge rate	5C
Max. Continuous Output Power	196kW
Charge Temperature*1	-20℃~+60℃
Discharge Temperature*2	-40℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Liquid cooling ( cycle frequently )
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· is a famous company both in China and the International market. We have a strong production foundation and marketing experience in manufacturing graphene battery price.

· Our factory is strategically positioned. It provides adequate access to product raw materials and skilled labors. And it emerges as a preferred production destination that provides seamless connectivity by road, air, and seaports. We have an orderly factory. All manufacturing processes are designed to create a safe and healthy working environment and comply with the stringent quality norms.

· We are convinced that our long-term success depends on our capacity to deliver sustainable value to our stakeholders and to wider society. Through our integrated leadership approach, we strive to become an even more sustainable company and maximize the positive impact we can have.

Application of the Product

graphene battery price can be widely used in various fields.

has been engaged in the production of for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
