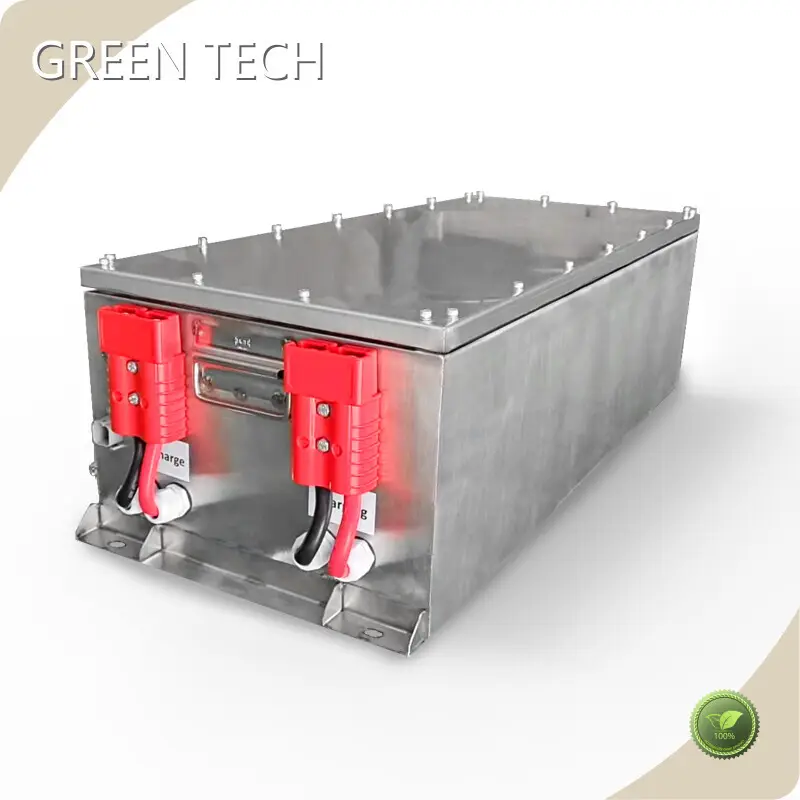

Custom Graphene Battery Price 96Vdc

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-96V20k-B
Energy storage	20kWh
Nominal Voltage	96Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	109.2Vdc
Discharge Cut-off Voltage	78Vdc
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	500A
Absolute Peak Current 10s	600A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP67
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	190kg
Dimensions(WxDxH)	810x550x500(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· graphene battery price is made of cost-efficient certified materials and exclusively crafted according to requirements.

· The product quality has been strictly controlled by professional QC team.

· advocates graphene battery price to expand its industrial value.

Company Features

· is considered as an indispensable source of graphene battery price. We have a wealth of experience in product design and manufacture.

· has strong design team, technology team and development team to launch novel ideas on graphene battery price.

· There is a strong team for sales and after sales service for users in Contact!

Application of the Product

The graphene battery price produced by is widely used in many industry sectors.

always gives priority to customers and services. With a great focus on customers, we strive to meet their needs and provide optimal solutions.
