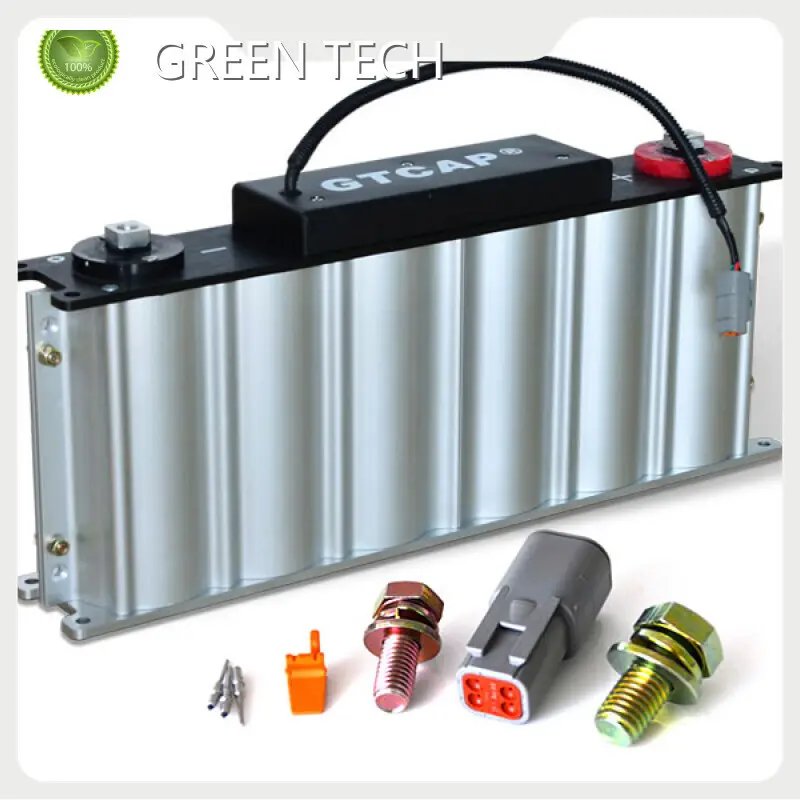

Custom High Voltage Capacitor Bank 100A

5.7 kg
SM Series
Part Number:
Max. Continuous Charge Current:
Discharge Cut-off Voltage:

Product details of the high voltage capacitor bank

Product Description

The offered high voltage capacitor bank is produced by using the best quality raw material and advanced technology, in line with set industry norms. This product is tested against other comparable products on the market. The product meets customer's expectation perfectly, implying the bright future of its market application.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number


Nominal capacitance

500 F

Capacitance tolerance

+20% / -0%

Rated voltage


Maximum absolute voltage


Maximum series voltage




Maximum continuous current (ΔT=40℃)

100 A

Maximum peak current, 1 sec.

2,275 A

Maximum leakage current (after 72hrs @ 25℃)

5.2 mA

Operating temperature range(Cell case temperature)

-40℃ to +65℃

Storage temperature range(Storage uncharged)

-40℃ to +70℃

Power terminals


Recommended torque - terminal

20/30 Nm

Vibration specification

GB-T 11287-2000

Shock specification

GBT 14537-1993

Environmental protection



5.7 kg

Internal temperature sensor

NTC Thermistor

Cell voltage monitoring

Overvoltage Alarm

Usable power density (Pd)

3,590 W/kg

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)


Company Advantage

• pays great attention to customer demand and strives to provide professional and quality services for customers. We are highly recognized by customers and are well received in the industry.
• Good geographic location, excellent traffic conditions, and telecommunications make contribution to sustainable development.
• Keeping up with the development trend of the Internet era, our company changed the business mode. We actively build offline marketing networks, expand online sales channels and opening official stores on several mainstream e-commerce platforms. Therefore, we gained a rapid growth of sales and the expansion of sales range.
are of high quality and affordable price. If you have any needs, please contact us. We are looking forward to reaching cooperation with you.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
