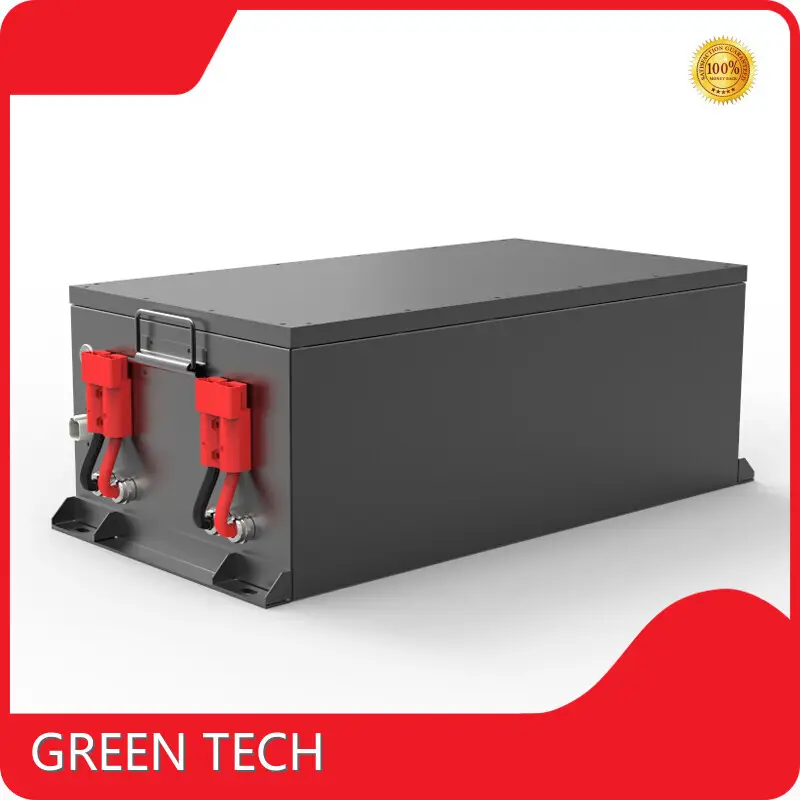

Custom Household Solar Battery Cost 48Vdc

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V6500-G
Energy storage	6.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	75kg
Dimensions(WxDxH)	940x400x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The whole production process of household solar battery cost is guided and supervised by experienced professionals.

· The quality of this product is ensured by strict management system and complete quality control system.

· With advanced introduced production equipment for household solar battery cost, our production comes out of high efficiency.

Company Features

· As a Chinese export brand, has been a leader in the domestic household solar battery cost field.

· Our factory operates from a state-of-the-art production facility designed and constructed specifically for the high volume manufacture of our diverse range of products.

· At we realize that our employees are our most valuable resources and investing in our human capital is critical to long-term growth. Ask online!

Application of the Product

The household solar battery cost of can meet the different needs of different customers.

With many years of practical experience, is capable of providing comprehensive and efficient one-stop solutions.
