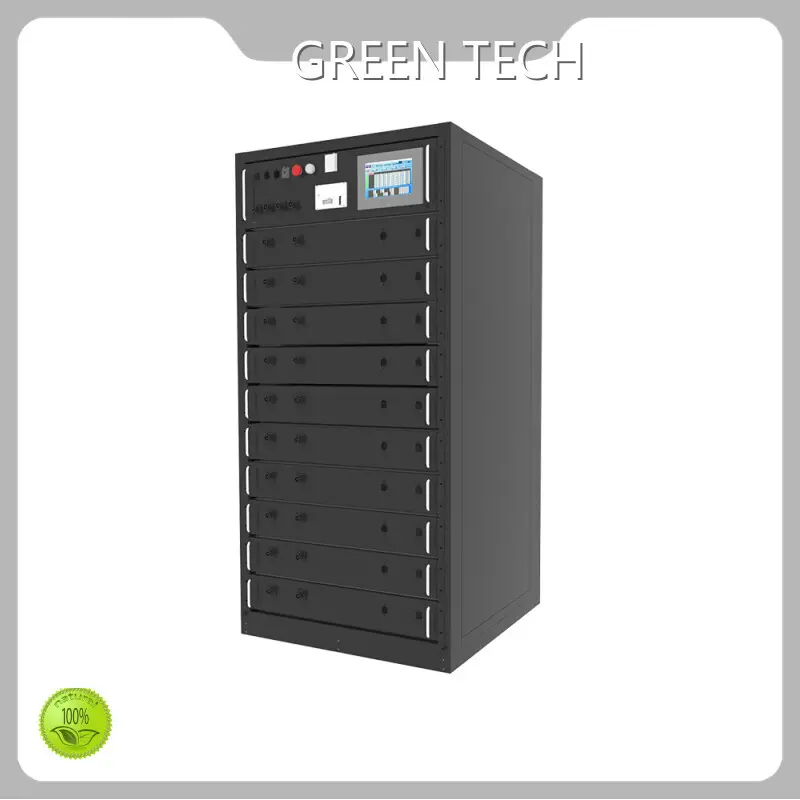

Custom Household Solar Battery Cost 512Vd.c

Product details of the household solar battery cost

Product Description

household solar battery cost is manufactured making use of advanced production technology. The quality and performance of the product are first-class in the industry. In contrast to with other products, this product is unsurpassed in its application prospects.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-512V50KW/100KWH-R
Energy storage	107.5kWh
Nominal Voltage	512Vd.c
Maximum Charge Voltage	576Vd.c
Discharge Cut-off Voltage	448Vd.c
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	120A
Max. Continuous Discharge Current	120A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	10,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	IP20 Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, TCP

Weight	1315kg
Dimensions(WxDxH)	801x832x1629(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)
