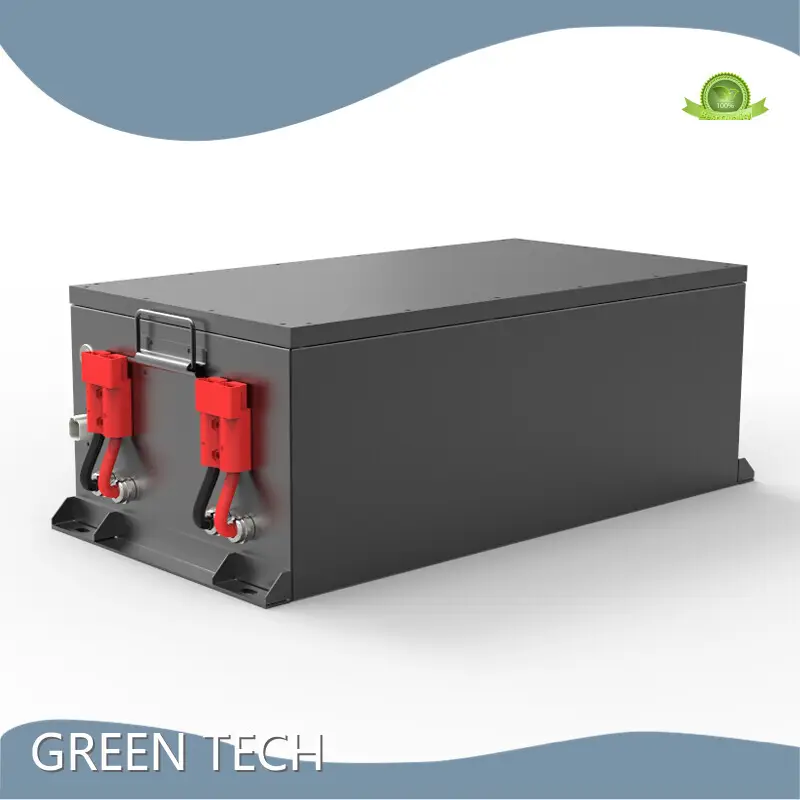

Custom Household Solar Battery Cost 940x400x252mm

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V6500-G
Energy storage	6.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	75kg
Dimensions(WxDxH)	940x400x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The raw material of household solar battery cost is strictly controlled from beginning to finish.

· As we always keep 'Quality first' firmly in mind, the product is sure to be of the highest quality.

· has been growing rapidly into a leader in household solar battery cost and related equipment.

Company Features

· centers on the development and production of household solar battery cost in the meantime we offer a wide range of other product portfolios.

· The household solar battery cost is of high quality.

· will continue to face challenges in the future to provide better services to clients around the world. Inquiry!

Application of the Product

household solar battery cost is widely applicable in the industry.

With Internet technology, we provide a one-stop solution for practical and effective implementation of related problems encountered in the process of purchasing products.
