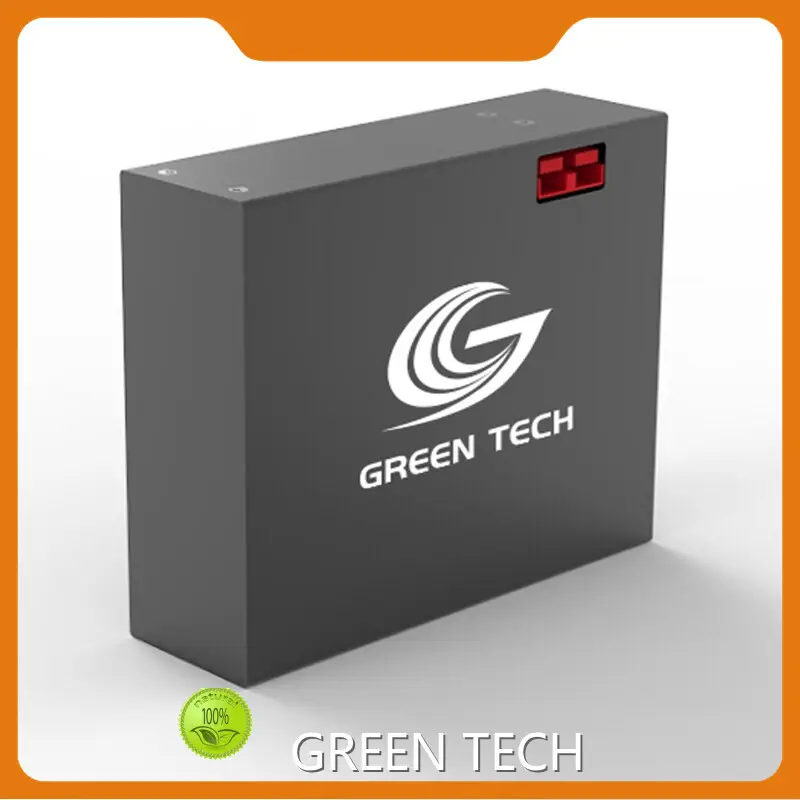

Custom Power Storage Solutions 24Vdc

Company Advantages

· power storage solutions offers desirable design and appealing appearance.

· Thanks to our strict quality monitor system, the product has approved by the international certifications.

· set up an integrated series of quality assurance system to ensure the power storage solutions quality.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-24V1000-E
Energy storage	1.0kWh
Nominal Voltage	24Vdc
Maximum Charge Voltage	29Vdc
Discharge Cut-off Voltage	20Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	50A
Peak Current	100A
Cooling Method	Natural
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Up to 10sets
Series-Parallel Connection	Not allowed

Weight	8.5kg
Dimensions(WxDxH)	242x65x173(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· By keeping track with the market development, we are occupied in manufacturing and trading a wide array of power storage solutions.

· Our company is supported by a dedicated R&D team. Their expertise in the power storage solutions industry enhances the planning of product optimization. This allows us to perfectly complete the planning of products. Our R&D talents are equipped with rich experience in the field of power storage solutions. They spend most of their time and efforts on research and development and keep up with the latest market trend.

· We endeavor to win more support and trust from customers. We'll continuously listen to and meet clients' needs with respect and pay attention to corporate responsibility to eventually persuade clients to build business partnerships with us.

Enterprise Advantages

has an experienced and excellent team, whose team members are equipped with great R&D capabilities and advanced production technology.

Our company inherits the concept of advancing with the times, and constantly takes improvement and innovation in service. It promotes us to provide comfortable services for the market and consumers.

Our company's mission is to provide quality products for customers. Based on the business philosophy of 'service first, honesty-based', we give full play to our advantages and strive to develop into a model enterprise in the industry.

During the development for years, has accumulated rich experience and has achieved excellent results. Now we take a certain position in the industry.

Through continuous improvement of sales channels, our company has established an unobstructed market channel and sales network at home and abroad with our major distribution outlets. It expands the visibility of our products.
