Custom Solar Battery Energy Storage 799.2Vd.c 1
Custom Solar Battery Energy Storage 799.2Vd.c 2
Custom Solar Battery Energy Storage 799.2Vd.c 1
Custom Solar Battery Energy Storage 799.2Vd.c 2

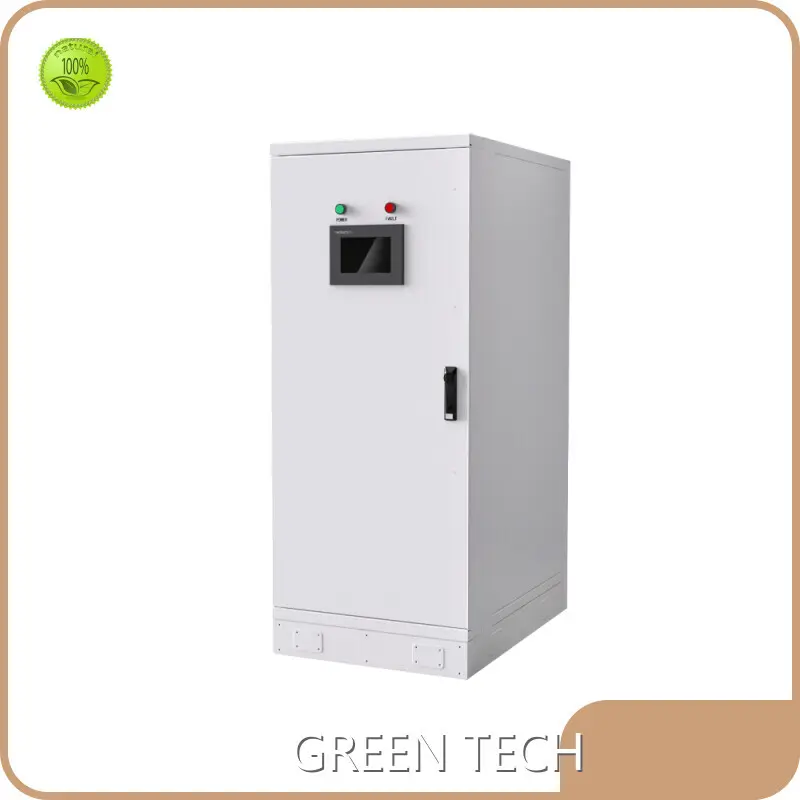

Custom Solar Battery Energy Storage 799.2Vd.c

Communication:
EMS:MODBUS TCP;PCS:CAN
Weight:
550kg
Part Number:
GTEM-800V96KW-57KWH-R
Nominal Voltage:
799.2Vd.c
Discharge Cut-off Voltage:
648Vd.c
Inquiry

Product details of the solar battery energy storage


Product Description

solar battery energy storage is made with advanced production equipment and fine production technology. This product guarantees high quality and excellent performance, as all factors affecting its quality and production performance are immediately detected and then corrected by our trained QC personnel. The employees of has been committed to offer the most professional service for customers.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-800V96KW-57KWH-R

Energy storage

57.5kWh

Nominal Voltage

799.2Vd.c

Maximum Charge Voltage

896.4Vd.c

Discharge Cut-off Voltage

648Vd.c

ESR/AC @1KHz 50% SOC

<70mΩ

Max. Continuous Charge Current

80A

Max. Continuous Discharge Current

120A

Cooling Method

Natural

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal

Monitoring Data

System voltage,current, temperature,SOC,SOH,cell’s voltage

Parallel Connection

Up to 16 parallel connections allowed

Storage Conditions

-20℃~+40℃ 25%~95%RH

SOC>30%, one full charge needed per two months

Weight

550kg

Dimensions(WxDxH)

600x870x1450(mm)

Certificate&Compatible Protocol
