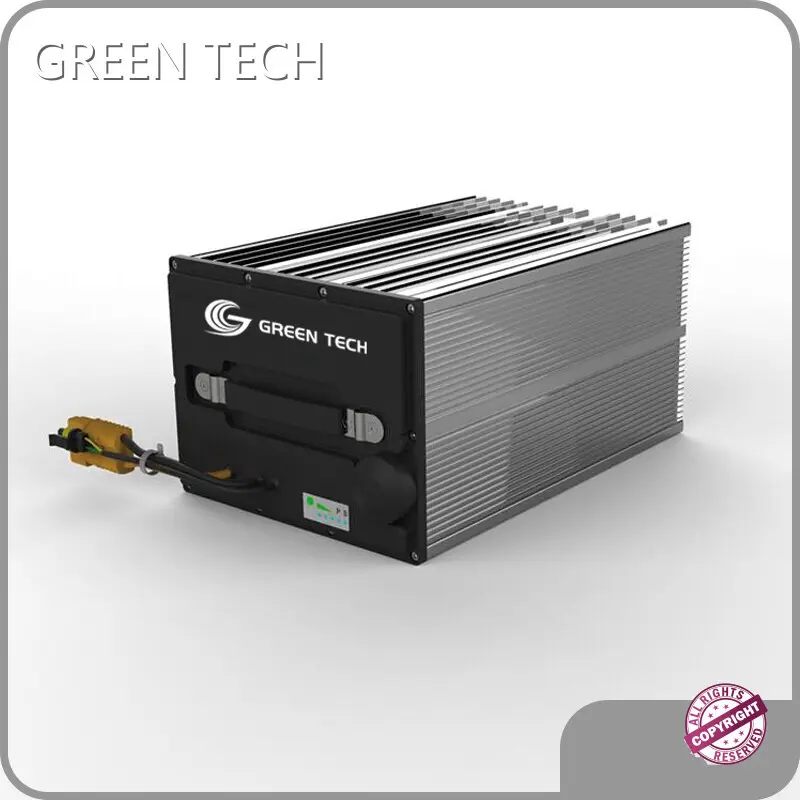

Customized Battery Energy Storage 15.5kg with Custom Services Fast Delivery

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V1248-M
Energy storage	1248Wh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<12mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	15.5kg
Dimensions(WxDxH)	230x180x300(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· battery energy storage is produced by purchasing advanced machines for production.

· Our dedicated and skilled quality controllers carefully inspect the product at every step of production in order to ensure that its quality remains exceptional without any defect.

· The product has been widely appreciated by the people around the world.

Company Features

· has a large production base and professional team to producing high quality battery energy storage.

· Our manufacturing plant is strategically placed. This enables us to maximize efficiency and ensure products are where they need to be at the right time.

· We are meeting our environmental responsibilities. We search for new ways to optimize our production processes by greatly reducing waste and energy consumption.

Application of the Product

Our battery energy storage has a wide range of applications.

insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
