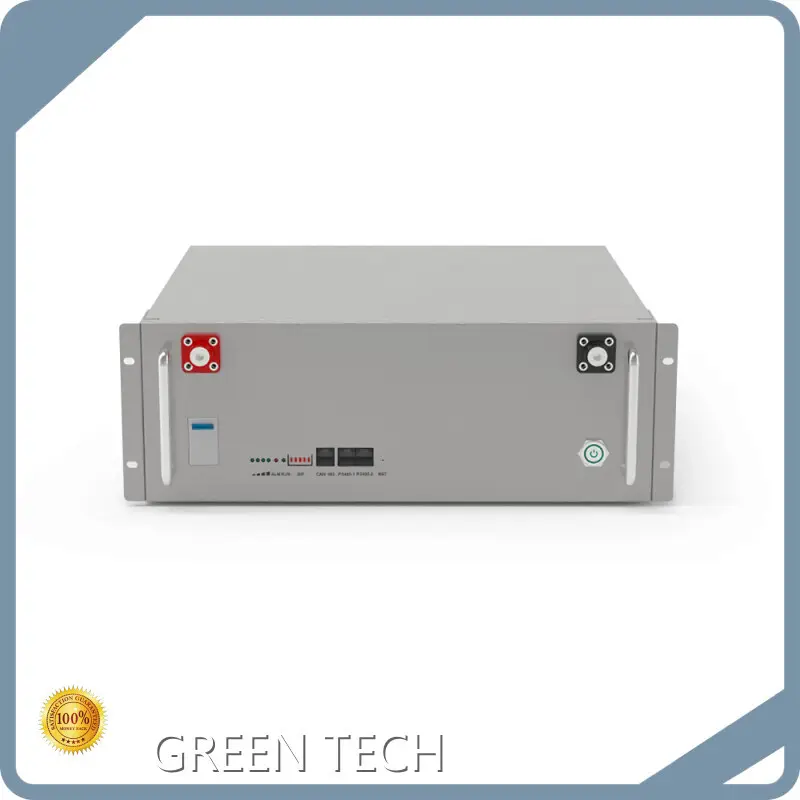

Deep Cycle Boat Battery Capess Series

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V5500-E
Energy storage	5.44kWh
Nominal Voltage	51.8Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	39.2Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Round Trip Efficiency	97.8%
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural cooling
Monitoring Data	System voltage, current, SOC, SOH, temperature, cycle, cell's voltage
Shell Material	Metal & ABS plastic

Weight	38kg
Dimensions(WxDxH)	470x462x170(mm)
Operating Humidity	0-90%RH Non-condensing

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 5.5kWh Capess Datasheet

PDF

Company Advantages

· deep cycle boat battery is designed to create an original look that is truly unique.

· The product is subjected to extensive quality assurance and testing program before shipment.

· The product is popular among the customers with high cost performance and takes a large market share.

Company Features

· is widely known as a Chinese leading manufacturer for deep cycle boat battery.

· The technical level of deep cycle boat battery is pretty high.

· The company puts a great deal of effort into environmental safety. During production, we adhere to the principles of saving energy and generating zero pollution. In such a way, the company hopes to protect our environment. Check now!

Application of the Product

Multiple in function and wide in application, deep cycle boat battery can be used in many industries and fields.

insists on providing customers with one-stop overall solution from the customer's point of view.
