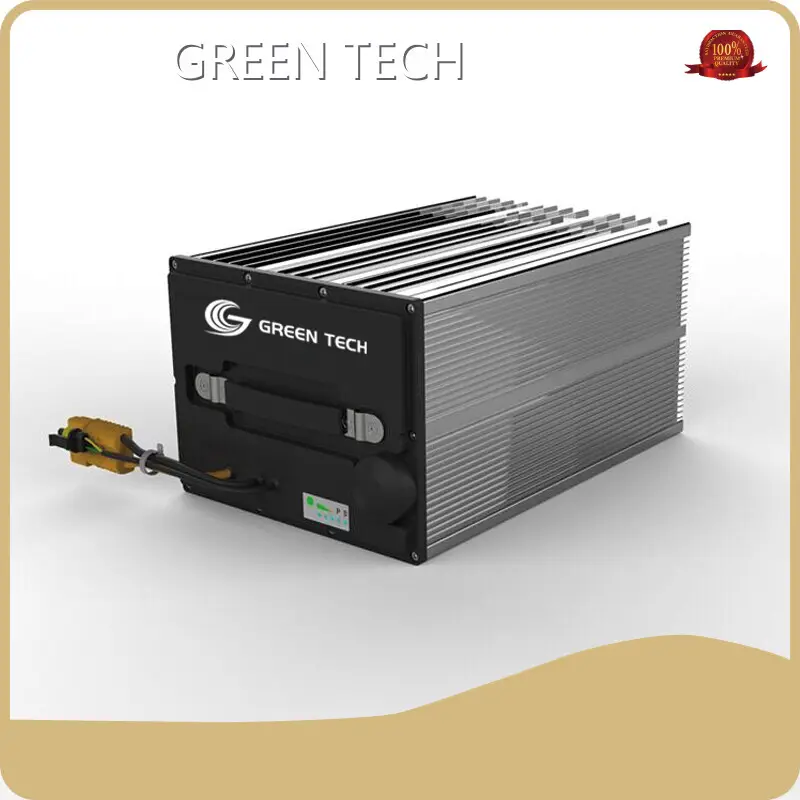

Deep Cycle Marine Battery 20kg

Company Advantages

· deep cycle marine battery is manufactured from optimum quality raw materials that render superior durability.

· The performance of deep cycle marine battery is almost the same as overseas similar product performance.

· is expanding its position as market leader.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-60V1560-M
Energy storage	1560Wh
Nominal Voltage	60Vdc
Maximum Charge Voltage	71.4Vdc
Discharge Cut-off Voltage	47.6Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	20kg
Dimensions(WxDxH)	230x180x360(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· specializes in R&D and production of deep cycle marine battery and is popular among customers.

· To win the leading position, the quality of deep cycle marine battery ranks top in the market.

· We are persisting in the "customer-orientation" approach. We put ideas into action to offer comprehensive and reliable solutions that are flexible to address each client's needs.

Product Details

deep cycle marine battery has been greatly improved in the following details.

Application of the Product

The deep cycle marine battery produced by is widely used in the industry.

Before developing a solution, we will fully understand the market situation and customer's needs. In this way, we can provide effective solutions for our customers.
