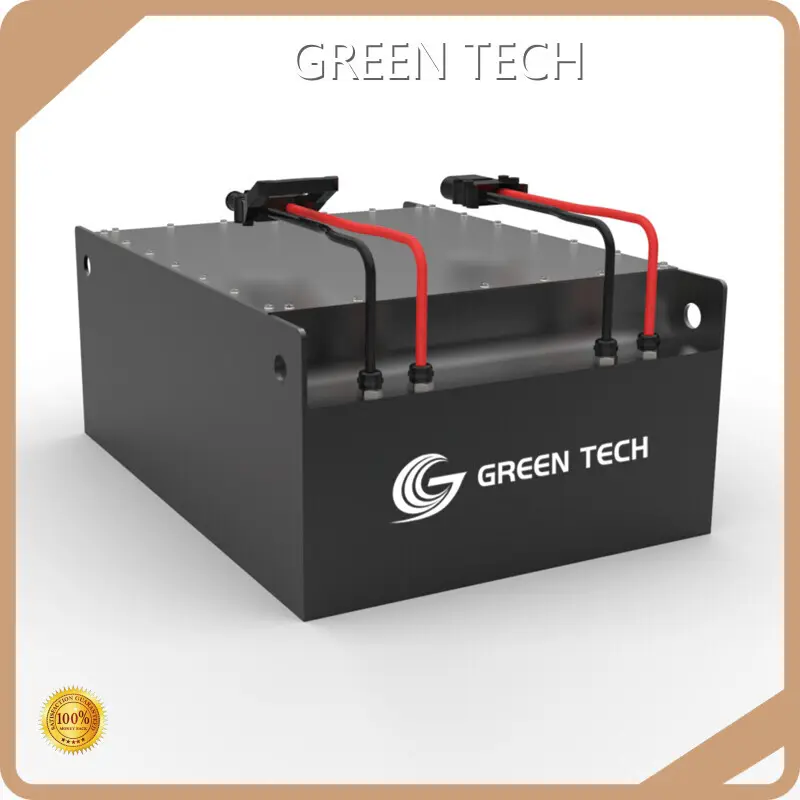

Deep Cycle Marine Battery 20kWhmanufacturing

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V20k-F
Energy storage	20kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37.8Vdc
ESR/AC @1KHz 50% SOC	<50mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	400kg
Dimensions(WxDxH)	1030x570x545(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· deep cycle marine battery is produced in a safe and clean environment.

· Our deep cycle marine battery is complete in specifications.

· The product sells well and occupied a large market share at home and abroad.

Company Features

· has been at the dominate position in deep cycle marine battery industry.

· The factory enjoys an exceptional advantage of location. It is near the raw materials and resources suppliers, energy plants and the place where abundant labors are available.

· The brand devotes into the wonderful vision of becoming a competitive deep cycle marine battery manufacturer. Inquire now!

Application of the Product

deep cycle marine battery is widely used in the industry.

While providing excellent products, is dedicated to providing personalized solutions for customers according to their needs and actual situations.
